ZyXEL LTE7490-M904

The Zyxel LTE7490-M904 is an 802.3at PoE powered LTE outdoor (IP68) CPE with integrated directional antennas.

Log in as “admin” on OEM web GUI
Upload OpenWrt initramfs-recovery.bin image on the “Maintenance → Firmware” page
Wait for OpenWrt to boot and ssh to root@192.168.1.1
Sysupgrade to the OpenWrt sysupgrade image and reboot

For more details about flashing see ZyXEL NR7101 or ZyXEL LTE5398-M904.

→ Basic configuration After flashing, proceed with this.
Set up your Internet connection, configure wireless, configure USB port, etc.

The default network configuration is:

Interface Name	Description	Default configuration
br-lan	LAN & WiFi	192.168.1.1/24
lan	LAN port	bridge member
wwan0	LTE modem	QMI
radio0	WiFi	Disabled

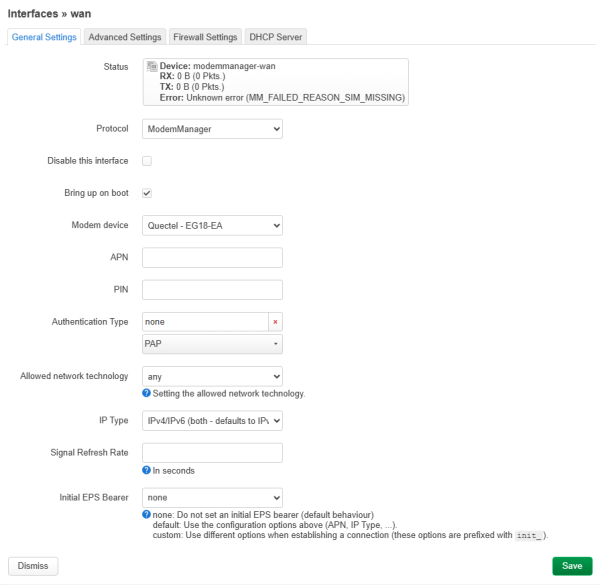

The LTE7490-M904 works nicely with luci-proto-modemmanager. Just install the package and change the wan “Protocol” to “ModemManager”:

→ hardware.button on howto use and configure the hardware button(s). Here, we merely name the buttons, so we can use them in the above Howto.

The ZyXEL LTE7490-M904 has the following buttons:

BUTTON	Event
Reset	reset
WLAN	-

Note: This will void your warranty!

Remove the SIM/button/LED cover and 12 screws holding the back plate and antenna cover together. Be careful with the cables.

→ port.serial general information about the serial port, serial port cable, etc.

Populated 5-pin header J5:

   [o] GND
   [ ] key - no pin
   [o] RX
   [o] TX
   [o] 3.3V Vcc

Serial connection parameters for ZyXEL LTE7490-M904	57600, 8N1, 3.3V

=================================================================== MT7621 stage1 code 10:33:11 (ASIC) CPU=50000000 HZ BUS=16666666 HZ ================================================================== Change MPLL source from XTAL to CR... do MEMPLL setting.. MEMPLL Config : 0x31100000 3PLL mode + External loopback === XTAL-40Mhz === DDR-800Mhz === PLL4 FB_DL: 0x9, 1/0 = 558/466 25000000 PLL2 FB_DL: 0x13, 1/0 = 551/473 4D000000 PLL3 FB_DL: 0x13, 1/0 = 618/406 4D000000 do DDR setting..[00320381] Apply DDR3 Setting...(use customer AC) 0 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 -------------------------------------------------------------------------------- 0000:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0001:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0002:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0003:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0004:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0005:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0006:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0007:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0008:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0009:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000E:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 000F:| 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0010:| 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0011:| 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0012:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0013:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0014:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0015:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0016:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0017:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0018:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0019:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001E:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001F:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 rank 0 coarse = 16 rank 0 fine = 56 B:| 0 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 opt_dle value:10 DRAMC_R0DELDLY[018]=0000312F ================================================================== RX DQS perbit delay software calibration ================================================================== 1.0-15 bit dq delay value ================================================================== bit| 0 1 2 3 4 5 6 7 8 9 -------------------------------------- 0 | 10 9 11 13 10 11 11 9 7 11 10 | 10 11 10 11 11 11 -------------------------------------- ================================================================== 2.dqs window x=pass dqs delay value (min~max)center y=0-7bit DQ of every group input delay:DQS0 =47 DQS1 = 49 ================================================================== bit DQS0 bit DQS1 0 (1~91)46 8 (1~91)46 1 (1~92)46 9 (2~91)46 2 (1~91)46 10 (1~94)47 3 (1~94)47 11 (1~90)45 4 (1~92)46 12 (1~92)46 5 (1~94)47 13 (1~91)46 6 (1~92)46 14 (2~96)49 7 (1~94)47 15 (1~92)46 ================================================================== 3.dq delay value last ================================================================== bit| 0 1 2 3 4 5 6 7 8 9 -------------------------------------- 0 | 11 10 12 13 11 11 12 9 10 14 10 | 12 15 13 14 11 14 ================================================================== ================================================================== TX perbyte calibration ================================================================== DQS loop = 15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqsdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqsdly_pass[1]=15, finish count=2 DQ loop=15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqdly_pass[1]=15, finish count=2 byte:0, (DQS,DQ)=(8,8) byte:1, (DQS,DQ)=(8,8) 20,data:88 [EMI] DRAMC calibration passed =================================================================== MT7621 stage1 code done CPU=50000000 HZ BUS=16666666 HZ =================================================================== U-Boot 1.1.3 (Dec 6 2019 - 18:37:12) Board: Ralink APSoC DRAM: 256 MB relocate_code Pointer at: 8ff94000 Config XHCI 40M PLL ****************************** Software System Reset Occurred ****************************** Allocate 16 byte aligned buffer: 8ffcb1f0 Enable NFI Clock # MTK NAND # : Use HW ECC NAND ID [C2 F1 80 95 02] Device found in MTK table, ID: c2f1, EXT_ID: 809502 Support this Device in MTK table! c2f1 select_chip [NAND]select ecc bit:4, sparesize :64 spare_per_sector=16 Signature matched and data read! load_fact_bbt success 1023 load fact bbt success [mtk_nand] probe successfully! mtd->writesize=2048 mtd->oobsize=64, mtd->erasesize=131072 devinfo.iowidth=8 ..============================================ Ralink UBoot Version: 5.0.0.0 -------------------------------------------- ASIC MT7621A DualCore (MAC to MT7530 Mode) DRAM_CONF_FROM: Auto-Detection DRAM_TYPE: DDR3 DRAM bus: 16 bit Xtal Mode=5 OCP Ratio=1/3 Flash component: 128 MBytes NOR Flash with NAND boot partition size Date:Dec 6 2019 Time:18:37:12 ============================================ icache: sets:256, ways:4, linesz:32 ,total:32768 dcache: sets:256, ways:4, linesz:32 ,total:32768 ##### The CPU freq = 880 MHZ #### estimate memory size =256 Mbytes #Reset_MT7530 .## Starting application at 0x8402A800 ... Z-LOADER V1.30 | 12/06/2019 18:37:15 NetLoop,call eth_halt ! NetLoop,call eth_init ! Trying Eth0 (10/100-M) Waitting for RX_DMA_BUSY status Start... done ETH_STATE_ACTIVE!! Multiboot Listening... 0 ## Booting image at bc14017c ... Image Name: OpenWrt Linux-3.10.14 Image Type: MIPS Linux Kernel Image (lzma compressed) Data Size: 14858118 Bytes = 14.2 MB Load Address: 80001000 Entry Point: 80001000 ................................................................................................................................................................................................................................... Verifying RAS Image Checksum ... OK Uncompressing Kernel Image ... OK No initrd ## Transferring control to Linux (at address 80001000) ... ## Giving linux memsize in MB, 256 Starting kernel ... LINUX started... THIS IS ASIC SDK 5.0.S.0 [ 0.000000] Linux version 3.10.14 (aaron@MT112122-081040) (gcc version 4.8.3 (OpenWrt/Linaro GCC 4.8-2014.04 unknown) ) #1 SMP Thu Jul 11 14:52:50 CST 2024 [ 0.000000] [ 0.000000] The CPU feqenuce set to 880 MHz [ 0.000000] GCMP present [ 0.000000] CPU0 revision is: 0001992f (MIPS 1004Kc) [ 0.000000] Software DMA cache coherency [ 0.000000] Determined physical RAM map: [ 0.000000] memory: 10000000 @ 00000000 (usable) [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] Zone ranges: [ 0.000000] DMA [mem 0x00000000-0x0bffffff] [ 0.000000] Normal [mem 0x0c000000-0x0fffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x00000000-0x0fffffff] [ 0.000000] Detected 3 available secondary CPU(s) [ 0.000000] Primary instruction cache 32kB, 4-way, VIPT, linesize 32 bytes. [ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.000000] PERCPU: Embedded 7 pages/cpu @8c204000 s6464 r8192 d14016 u32768 [ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 65024 [ 0.000000] Kernel command line: console=ttyS1,57600n8 root=/dev/ram0 rootfstype=squashfs,jffs2 [ 0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes) [ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes) [ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes) [ 0.000000] Writing ErrCtl register=00008000 [ 0.000000] Readback ErrCtl register=00008000 [ 0.000000] Memory: 241584k/262144k available (4002k kernel code, 20560k reserved, 978k data, 12996k init, 0k highmem) [ 0.000000] Hierarchical RCU implementation. [ 0.000000] NR_IRQS:128 [ 0.000000] console [ttyS1] enabled [ 0.120000] Calibrating delay loop... 562.17 BogoMIPS (lpj=1124352) [ 0.152000] pid_max: default: 32768 minimum: 301 [ 0.156000] Mount-cache hash table entries: 512 [ 0.160000] launch: starting cpu1 [ 0.164000] launch: cpu1 gone! [ 0.164000] CPU1 revision is: 0001992f (MIPS 1004Kc) [ 0.164000] Primary instruction cache 32kB, 4-way, VIPT, linesize 32 bytes. [ 0.164000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.164000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.196000] Synchronize counters for CPU 1: done. [ 0.204000] launch: starting cpu2 [ 0.208000] launch: cpu2 gone! [ 0.208000] CPU2 revision is: 0001992f (MIPS 1004Kc) [ 0.208000] Primary instruction cache 32kB, 4-way, VIPT, linesize 32 bytes. [ 0.208000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.208000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.236000] Synchronize counters for CPU 2: done. [ 0.244000] launch: starting cpu3 [ 0.248000] launch: cpu3 gone! [ 0.248000] CPU3 revision is: 0001992f (MIPS 1004Kc) [ 0.248000] Primary instruction cache 32kB, 4-way, VIPT, linesize 32 bytes. [ 0.248000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.248000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.276000] Synchronize counters for CPU 3: done. [ 0.284000] Brought up 4 CPUs [ 0.288000] NET: Registered protocol family 16 [ 0.580000] release PCIe RST: RALINK_RSTCTRL = 7000000 [ 0.584000] PCIE PHY initialize [ 0.588000] ***** Xtal 40MHz ***** [ 0.592000] start MT7621 PCIe register access [ 1.168000] RALINK_RSTCTRL = 7000000 [ 1.172000] RALINK_CLKCFG1 = 77ffeff8 [ 1.176000] [ 1.176000] *************** MT7621 PCIe RC mode ************* [ 1.656000] PCIE1 no card, disable it(RST&CLK) [ 1.660000] PCIE2 no card, disable it(RST&CLK) [ 1.664000] pcie_link status = 0x1 [ 1.668000] RALINK_RSTCTRL= 1000000 [ 1.672000] *** Configure Device number setting of Virtual PCI-PCI bridge *** [ 1.676000] RALINK_PCI_PCICFG_ADDR = 21007f2 -> 21007f2 [ 1.680000] PCIE0 enabled [ 1.684000] interrupt enable status: 100000 [ 1.688000] Port 0 N_FTS = 1b105000 [ 1.692000] config reg done [ 1.696000] init_rt2880pci done [ 1.720000] bio: create slab <bio-0> at 0 [ 1.724000] SCSI subsystem initialized [ 1.728000] usbcore: registered new interface driver usbfs [ 1.732000] usbcore: registered new interface driver hub [ 1.736000] usbcore: registered new device driver usb [ 1.740000] PCI host bridge to bus 0000:00 [ 1.744000] pci_bus 0000:00: root bus resource [mem 0x60000000-0x6fffffff] [ 1.748000] pci_bus 0000:00: root bus resource [io 0x1e160000-0x1e16ffff] [ 1.752000] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff] [ 1.756000] pci 0000:00:00.0: BAR 0: can't assign mem (size 0x80000000) [ 1.760000] pci 0000:00:00.0: BAR 8: assigned [mem 0x60000000-0x600fffff] [ 1.764000] pci 0000:00:00.0: BAR 1: assigned [mem 0x60100000-0x6010ffff] [ 1.768000] pci 0000:01:00.0: BAR 0: assigned [mem 0x60000000-0x600fffff] [ 1.772000] pci 0000:00:00.0: PCI bridge to [bus 01] [ 1.776000] pci 0000:00:00.0: bridge window [mem 0x60000000-0x600fffff] [ 1.780000] BAR0 at slot 0 = 0 [ 1.784000] bus=0x0, slot = 0x0 [ 1.788000] res[0]->start = 0 [ 1.792000] res[0]->end = 0 [ 1.796000] res[1]->start = 60100000 [ 1.800000] res[1]->end = 6010ffff [ 1.804000] res[2]->start = 0 [ 1.808000] res[2]->end = 0 [ 1.812000] res[3]->start = 0 [ 1.816000] res[3]->end = 0 [ 1.820000] res[4]->start = 0 [ 1.824000] res[4]->end = 0 [ 1.828000] res[5]->start = 0 [ 1.832000] res[5]->end = 0 [ 1.836000] bus=0x1, slot = 0x0, irq=0x4 [ 1.840000] res[0]->start = 60000000 [ 1.844000] res[0]->end = 600fffff [ 1.848000] res[1]->start = 0 [ 1.852000] res[1]->end = 0 [ 1.856000] res[2]->start = 0 [ 1.860000] res[2]->end = 0 [ 1.864000] res[3]->start = 0 [ 1.868000] res[3]->end = 0 [ 1.872000] res[4]->start = 0 [ 1.876000] res[4]->end = 0 [ 1.880000] res[5]->start = 0 [ 1.884000] res[5]->end = 0 [ 1.888000] Switching to clocksource MIPS [ 1.892000] NET: Registered protocol family 2 [ 1.904000] TCP established hash table entries: 2048 (order: 2, 16384 bytes) [ 1.916000] TCP bind hash table entries: 2048 (order: 2, 16384 bytes) [ 1.928000] TCP: Hash tables configured (established 2048 bind 2048) [ 1.940000] TCP: reno registered [ 1.948000] UDP hash table entries: 256 (order: 1, 8192 bytes) [ 1.960000] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes) [ 1.972000] NET: Registered protocol family 1 [ 3.432000] 4 CPUs re-calibrate udelay(lpj = 1167360) [ 3.444000] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 3.456000] jffs2: version 2.2. (NAND) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 3.472000] msgmni has been set to 471 [ 3.480000] io scheduler noop registered (default) [ 3.488000] reg_int_mask=0, INT_MASK= 0 [ 3.496000] HSDMA_init [ 3.504000] [ 3.504000] hsdma_phy_tx_ring0 = 0x1bc00000, hsdma_tx_ring0 = 0xbbc00000 [ 3.520000] [ 3.520000] hsdma_phy_rx_ring0 = 0x1bc04000, hsdma_rx_ring0 = 0xbbc04000 [ 3.536000] TX_CTX_IDX0 = 0 [ 3.540000] TX_DTX_IDX0 = 0 [ 3.548000] RX_CRX_IDX0 = 3ff [ 3.552000] RX_DRX_IDX0 = 0 [ 3.560000] set_fe_HSDMA_glo_cfg [ 3.564000] HSDMA_GLO_CFG = 465 [ 3.576000] Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled [ 3.592000] serial8250: ttyS0 at MMIO 0x1e000d00 (irq = 27) is a 16550A [ 3.604000] serial8250: ttyS1 at MMIO 0x1e000c00 (irq = 26) is a 16550A [ 3.616000] Ralink gpio driver initialized [ 3.636000] brd: module loaded [ 3.640000] MediaTek Nand driver init, version v2.1 Fix AHB virt2phys error [ 3.656000] Allocate 16 byte aligned buffer: 811a2590 [ 3.664000] Enable NFI Clock [ 3.672000] # MTK NAND # : Use HW ECC [ 3.680000] NAND ID [C2 F1 80 95 02, 00809502] [ 3.688000] Device found in MTK table, ID: c2f1, EXT_ID: 809502 [ 3.700000] Support this Device in MTK table! c2f1 [ 3.708000] NAND device: Manufacturer ID: 0xc2, Chip ID: 0xf1 (Macronix NAND 128MiB 3,3V 8-bit), 128MiB, page size: 2048, OOB size: 64 [ 3.732000] [NAND]select ecc bit:4, sparesize :64 spare_per_sector=16 [ 3.748000] Scanning device for bad blocks [ 3.992000] Signature matched and data read! [ 4.000000] load_fact_bbt success 1023 [ 4.008000] 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [ 4.028000] 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [ 4.048000] 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [ 4.068000] 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [ 4.088000] 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [ 4.108000] 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [ 4.128000] 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [ 4.148000] 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [ 4.168000] Creating 10 MTD partitions on "MT7621-NAND": [ 4.176000] 0x000000000000-0x000007f80000 : "ALL" [ 4.188000] 0x000000000000-0x000000080000 : "Bootloader" [ 4.200000] 0x000000080000-0x000000100000 : "Config" [ 4.212000] 0x000000100000-0x000000140000 : "Factory" [ 4.220000] 0x000000140000-0x000002000000 : "Kernel" [ 4.232000] 0x000002140000-0x000004000000 : "Kernel2" [ 4.244000] 0x000004000000-0x000004100000 : "wwan" [ 4.256000] 0x000004100000-0x000005100000 : "data" [ 4.264000] 0x000005100000-0x000005200000 : "rom-d" [ 4.276000] 0x000005200000-0x000005280000 : "reserve" [ 4.288000] [mtk_nand] probe successfully! [ 4.296000] rdm_major = 253 [ 4.304000] GMAC1_MAC_ADRH -- : 0x0000d41a [ 4.312000] GMAC1_MAC_ADRL -- : 0xd1d89654 [ 4.320000] Ralink APSoC Ethernet Driver Initilization. v3.1 1024 rx/tx descriptors allocated, mtu = 2048! [ 4.340000] GMAC1_MAC_ADRH -- : 0x0000d41a [ 4.348000] GMAC1_MAC_ADRL -- : 0xd1d89654 [ 4.356000] set proc_user_pid is ok [ 4.364000] PROC INIT OK! [ 4.368000] GobiNet: Quectel_Linux&Android_GobiNet_Driver_V1.6.2.9 [ 4.380000] usbcore: registered new interface driver GobiNet [ 4.392000] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver [ 4.408000] ehci-pci: EHCI PCI platform driver [ 4.416000] *****run project phy. [ 4.432000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.452000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.472000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.492000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.512000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.532000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.552000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.572000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.592000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.612000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.656000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.676000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.696000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.716000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.736000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.756000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.776000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.796000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.816000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.836000] FM_OUT value: u4FmOut = 0(0x00000000) [ 4.976000] xhci-hcd xhci-hcd: xHCI Host Controller [ 4.984000] xhci-hcd xhci-hcd: new USB bus registered, assigned bus number 1 [ 5.000000] xhci-hcd xhci-hcd: irq 22, io mem 0x1e1c0000 [ 5.012000] hub 1-0:1.0: USB hub found [ 5.020000] hub 1-0:1.0: 2 ports detected [ 5.028000] xhci-hcd xhci-hcd: xHCI Host Controller [ 5.040000] xhci-hcd xhci-hcd: new USB bus registered, assigned bus number 2 [ 5.052000] hub 2-0:1.0: USB hub found [ 5.060000] hub 2-0:1.0: 1 port detected [ 5.068000] usbcore: registered new interface driver usb-storage [ 5.080000] usbcore: registered new interface driver usbserial [ 5.092000] usbcore: registered new interface driver option [ 5.104000] usbserial: USB Serial support registered for GSM modem (1-port) [ 5.120000] TCP: cubic registered [ 5.124000] Initializing XFRM netlink socket [ 5.136000] NET: Registered protocol family 10 [ 5.144000] NET: Registered protocol family 17 [ 5.152000] NET: Registered protocol family 15 [ 5.164000] 8021q: 802.1Q VLAN Support v1.8 [ 5.224000] Freeing unused kernel memory: 12996K (804df000 - 81190000) busybox init and set aff init started: BusyBox v1.20.1 (2024-07-11 14:28:42 CST) [ 5.384000] usb 2-1: new SuperSpeed USB device number 2 using xhci-hcd [ 5.412000] usb 2-1: Parent hub missing LPM exit latency info. Power management will be impacted. [ 5.432000] add_ep parameters, dev_speed 5, is_in 1, isTT 0, ep_type 2, maxp 1024, interval 1, burst 0, mult 0, ep 0x8d3cc500, ep_ctx 0xbbc10080, sch_ep 0x8ccbf880 [ 5.460000] add_ep parameters, dev_speed 5, is_in 0, isTT 0, ep_type 2, maxp 1024, interval 1, burst 0, mult 0, ep 0x8d3cc52c, ep_ctx 0xbbc10060, sch_ep 0x8ccbf600 [ 5.488000] add_ep parameters, dev_speed 5, is_in 1, isTT 0, ep_type 3, maxp 10, interval 256, burst 0, mult 0, ep 0x8cc5a780, ep_ctx 0xbbc10100, sch_ep 0x8ccbf380 [ 5.520000] count_ss_bw, frame_idx 0, repeat 0, td_size 10, result bw 10 [ 5.532000] final best idx 0, best repeat 0 [ 5.540000] add_ep parameters, dev_speed 5, is_in 1, isTT 0, ep_type 2, maxp 1024, interval 1, burst 0, mult 0, ep 0x8cc5a7ac, ep_ctx 0xbbc100c0, sch_ep 0x8ccbf180 [ 5.568000] add_ep parameters, dev_speed 5, is_in 0, isTT 0, ep_type 2, maxp 1024, interval 1, burst 0, mult 0, ep 0x8cc5a7d8, ep_ctx 0xbbc100a0, sch_ep 0x8cca3e00 [ 5.600000] add_ep parameters, dev_speed 5, is_in 1, isTT 0, ep_type 3, maxp 10, interval 256, burst 0, mult 0, ep 0x8cc5a880, ep_ctx 0xbbc10180, sch_ep 0x8cca3b80 [ 5.628000] count_ss_bw, frame_idx 0, repeat 0, td_size 10, result bw 20 [ 5.640000] final best idx 0, best repeat 0 [ 5.652000] add_ep parameters, dev_speed 5, is_in 1, isTT 0, ep_type 2, maxp 1024, interval 1, burst 0, mult 0, ep 0x8cc5a8ac, ep_ctx 0xbbc10140, sch_ep 0x8cca3980 [ 5.680000] add_ep parameters, dev_speed 5, is_in 0, isTT 0, ep_type 2, maxp 1024, interval 1, burst 0, mult 0, ep 0x8cc5a8d8, ep_ctx 0xbbc100e0, sch_ep 0x8cca3700 [ 5.708000] add_ep parameters, dev_speed 5, is_in 1, isTT 0, ep_type 3, maxp 10, interval 256, burst 0, mult 0, ep 0x8cc5a980, ep_ctx 0xbbc10200, sch_ep 0x8cca3480 [ 5.736000] count_ss_bw, frame_idx 0, repeat 0, td_size 10, result bw 30 [ 5.752000] final best idx 0, best repeat 0 [ 5.760000] add_ep parameters, dev_speed 5, is_in 1, isTT 0, ep_type 2, maxp 1024, interval 1, burst 0, mult 0, ep 0x8cc5a9ac, ep_ctx 0xbbc101c0, sch_ep 0x8cca3280 [ 5.788000] add_ep parameters, dev_speed 5, is_in 0, isTT 0, ep_type 2, maxp 1024, interval 1, burst 0, mult 0, ep 0x8cc5a9d8, ep_ctx 0xbbc10120, sch_ep 0x8ccc7f00 [ 5.820000] add_ep parameters, dev_speed 5, is_in 1, isTT 0, ep_type 3, maxp 8, interval 256, burst 0, mult 0, ep 0x8cc5aa80, ep_ctx 0xbbc10240, sch_ep 0x8ccc7c80 [ 5.848000] count_ss_bw, frame_idx 0, repeat 0, td_size 8, result bw 38 [ 5.860000] final best idx 0, best repeat 0 [ 5.868000] add_ep parameters, dev_speed 5, is_in 1, isTT 0, ep_type 2, maxp 1024, interval 1, burst 2, mult 0, ep 0x8cc5aaac, ep_ctx 0xbbc103c0, sch_ep 0x8ccc7a80 [ 5.896000] add_ep parameters, dev_speed 5, is_in 0, isTT 0, ep_type 2, maxp 1024, interval 1, burst 2, mult 0, ep 0x8cc5aad8, ep_ctx 0xbbc103e0, sch_ep 0x8ccc7800 [ 5.928000] option 2-1:1.0: GSM modem (1-port) converter detected [ 5.944000] usb 2-1: GSM modem (1-port) converter now attached to ttyUSB0 [ 5.956000] option 2-1:1.1: GSM modem (1-port) converter detected [ 5.972000] usb 2-1: GSM modem (1-port) converter now attached to ttyUSB1 [ 5.984000] option 2-1:1.2: GSM modem (1-port) converter detected [ 6.000000] usb 2-1: GSM modem (1-port) converter now attached to ttyUSB2 [ 6.012000] option 2-1:1.3: GSM modem (1-port) converter detected [ 6.028000] usb 2-1: GSM modem (1-port) converter now attached to ttyUSB3 [ 6.040000] add_ep parameters, dev_speed 5, is_in 1, isTT 0, ep_type 3, maxp 8, interval 256, burst 0, mult 0, ep 0x8cc5aa80, ep_ctx 0xbbc10240, sch_ep 0x8ccc1480 [ 6.072000] count_ss_bw, frame_idx 0, repeat 0, td_size 8, result bw 38 [ 6.084000] final best idx 0, best repeat 0 [ 6.092000] add_ep parameters, dev_speed 5, is_in 1, isTT 0, ep_type 2, maxp 1024, interval 1, burst 2, mult 0, ep 0x8cc5aaac, ep_ctx 0xbbc103c0, sch_ep 0x8ccc1280 [ 6.120000] add_ep parameters, dev_speed 5, is_in 0, isTT 0, ep_type 2, maxp 1024, interval 1, burst 2, mult 0, ep 0x8cc5aad8, ep_ctx 0xbbc103e0, sch_ep 0x8cd08f00 [ 6.152000] GobiNet 2-1:1.4 usb0: register 'GobiNet' at usb-xhci-hcd-1, GobiNet Ethernet Device, 02:50:f4:00:00:00 [ 6.176000] creating qcqmi0 [ 6.184000] GobiNet::qmap_register_device wwan0 [ 6.192000] GobiNet::qmap_register_device wwan1 [ 6.204000] GobiNet::qmap_register_device wwan2 [ 6.216000] GobiNet::qmap_register_device wwan3 [ 6.228000] GobiNet::qmap_register_device wwan4 [ 6.236000] GobiNet::qmap_register_device wwan5 [ 6.248000] GobiNet::qmap_register_device wwan6 [ 6.260000] GobiNet::qmap_register_device wwan7 [ 6.708000] UBI: attaching mtd7 to ubi0 [ 6.860000] UBI: scanning is finished [ 6.880000] UBI: attached mtd7 (name "data", size 16 MiB) to ubi0 [ 6.896000] UBI: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 6.908000] UBI: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 6.920000] UBI: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 6.936000] UBI: good PEBs: 128, bad PEBs: 0, corrupted PEBs: 0 [ 6.948000] UBI: user volume: 1, internal volumes: 1, max. volumes count: 128 [ 6.960000] UBI: max/mean erase counter: 11/6, WL threshold: 4096, image sequence number: 1879470012 [ 6.980000] UBI: available PEBs: 0, total reserved PEBs: 128, PEBs reserved for bad PEB handling: 20 [ 6.996000] UBI: background thread "ubi_bgt0d" started, PID 507 UBI device number 0, total 128 LEBs (16252928 bytes, 15.5 MiB), available 0 LEBs (0 bytes), LEB size 126976 bytes (124.0 KiB) [ 7.140000] UBIFS: background thread "ubifs_bgt0_0" started, PID 538 [ 7.276000] UBIFS: mounted UBI device 0, volume 0, name "data" [ 7.288000] UBIFS: LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 7.308000] UBIFS: FS size: 11935744 bytes (11 MiB, 94 LEBs), journal size 1015809 bytes (0 MiB, 6 LEBs) [ 7.324000] UBIFS: reserved for root: 563754 bytes (550 KiB) [ 7.336000] UBIFS: media format: w4/r0 (latest is w4/r0), UUID 2D5FAE68-4076-4184-A498-04B24C214691, small LPT model Mount successfully!! UBI Partition already with check flag\n mk[ 7.392000] Ralink APSoC Hardware Watchdog Timer dir crontab.x watchdog fork, parent exit! OPTIMIZED_FOR -> wifi NUM_OF_CPU -> 4 wifiDomain1 -> wifiDomain2 -> CONFIG_RALINK_MT7621 -> y CONFIG_ARCH_MT7623 -> 2 > /proc/irq/3/smp_affinity, = 2 4 > /proc/irq/4/smp_affinity, = 4 8 > /proc/irq/24/smp_affinity, = 8 8 > /proc/irq/25/smp_affinity, = 8 8 > /proc/irq/19/smp_affinity, = 8 8 > /proc/irq/20/smp_affinity, = 8 8 > /proc/irq/22/smp_affinity, = 8 eth0 RPS: CPU0/2/3 [ 7.628000] PPP generic driver version 2.4.2 [ 7.656000] l2tp_core: L2TP core driver, V2.0 [ 7.672000] l2tp_netlink: L2TP netlink interface [ 7.692000] l2tp_eth: L2TP ethernet pseudowire support (L2TPv3) [ 7.712000] l2tp_ip: L2TP IP encapsulation support (L2TPv3) [ 7.748000] ip_tables: (C) 2000-2006 Netfilter Core Team [ 7.756000] Type=Restricted Cone [ 7.844000] nf_conntrack version 0.5.0 (3977 buckets, 15908 max) [ 7.984000] Netfilter messages via NETLINK v0.30. [ 8.004000] Ebtables v2.0 registered [ 8.084000] ip6_tables: (C) 2000-2006 Netfilter Core Team [ 8.192000] ctnetlink v0.93: registering with nfnetlink. [ 8.264000] u32 classifier [ 8.272000] Actions configured [ 8.292000] Mirror/redirect action on [ 8.316000] Failed to load ipt action [ 8.396000] netem: version 1.3 [ 8.536000] register mt_drv [ 8.548000] [ 8.548000] [ 8.548000] === pAd = c0881000, size = 1170240 === [ 8.548000] [ 8.568000] <-- RTMPAllocTxRxRingMemory, Status=0, ErrorValue=0x [ 8.580000] <-- RTMPAllocAdapterBlock, Status=0 [ 8.588000] pAd->CSRBaseAddress =0xc0780000, csr_addr=0xc0780000! [ 8.600000] device_id =0x7603 [ 8.608000] RtmpChipOpsHook(507): Not support for HIF_MT yet! [ 8.616000] mt7603_init()--> [ 8.624000] mt_bcn_buf_init(224): Not support for HIF_MT yet! [ 8.636000] <--mt7603_init() [ 8.700000] GobiNet::QMIWDASetDataFormat qmap settings qmap_version=5, rx_size=16384, tx_size=3072 [ 8.720000] GobiNet::QMIWDASetDataFormat qmap settings ul_data_aggregation_max_size=3072, ul_data_aggregation_max_datagrams=16 CA directory is exist 2 CA file is exist CERT is match the Key! Jan 1 00:00:08 crond[786]: crond: crond (busybox 1.20.1) started, log level 8 START disable Lan... Set: phy[0].reg[0] = 1940 Set: phy[1].reg[0] = 1940 Set: phy[2].reg[0] = 1940 Set: phy[3].reg[0] = 1940 1970-01-01 00:00:09 dnsmasq<809>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 23 bind server socket 3 on /var/lib/.sock/zcfg_sockaddr23 successfully dnsmasq: unknown user or group: root unknown user or group: rootFAILED to start upSet: phy[2].reg[0] = 1940 Set: phy[2].reg[0] = 1040 grep: /data/zcfg_config.json: No such file or directory =========== zcmd_core_dump.sh: Settings the core_pattern,suid_dumpable,print-fatal-signals for zcmd gdb =========== Check Boot from default config 1970-01-01 00:00:10 zcmd<826>, zcmd.c:6712, main(), INFO: Start ZCMD daemon 1970-01-01 00:00:10 zcmd<828>, uitimer.c:95, UITimerProc(), INFO: thread starts zcfg_schema.bin killall: zywifid_run.sh: no process killed init process! info.pid = 837 and info.irq = 6 info.pid = 837 and info.irq = 8 killall: zywifid: no process killed 1970-01-01 00:00:10 zywifid<839>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 41 bind server socket 3 on /var/lib/.sock/zcfg_sockaddr41 successfully zywifid> [ALERT] wifi_module_init:1082: load libzywl_001_ecn.so .......... zywifid> [ALERT] main:1211: Check and fix Wifi MAC address...... failed to load /tmp/.factory-startup, try init and reload again Find MTD Device /dev/mtd8 with name rom-d. mtd.oobsize 64 mtd.writesize 2048 romd size 4294967295 romd crc 65535 mtd.oobsize 64 mtd.writesize 2048 crc 0 warning! crc error in section Factory: expect 0x6e909c7c, got 0xffffffff! zyUtilIGetBaseMAC: Function executed zyUtilIGetNthMAC: Function executed zyUtilIGetNumberOfMAC: Function executed Thu Jul 11 00:00:00 UTC 2024 Enable core dump function rm: can't remove '/tmp/wifiScanTime*': No such file or directory kernel.core_pattern = /data/coredump/%e.core Please press Enter to activate this console. Entering Neighbour Cell list rom convertion Neighbour list already exist, no need to do rom convertion **** json_util.c line 174, json_object_to_file_ext() : write /data/zcfg_config.json to flash successfully MAX Number of Interface Stack is 254 Enter zcmdTr98MapTableInit json_object_from_file: error opening file /data/zcfg_tr98_map.json: No such file or directory zcmdTr98MtRestore: Fail to Load /data/zcfg_tr98_map.json 2024-07-11 00:00:00 zcmd<826>, zcmd.c:6829, main(), WARNING: tr98 map table is empty, rebuild it zcmdBuildTr98ObjParamMapping: obj 29940 zcmdBuildTr98ObjParamMapping: obj 29376 zcmdBuildTr98ObjParamMapping: obj 27732 zcmdBuildTr98ObjParamMapping: obj 28224 zcmdBuildTr98ObjParamMapping: obj 28800 zcmdBuildTr98ObjParamMapping: obj 34428 zcmdTr98MtDslDiagTestAdd: dslIfaceName DSL.Channel.1 zcmdTr98MappingAdd: add obj 34428 0,0,0,0,0,0 181/98 object mapping fail, ret= -6 ret = 0 zcmdBuildMapTableOfEthIntf():12580 zcmdTr98MtEthLinkAdd: LAN Ethernet.Link.1 zcmdTr98ParmRtLanEthLink ret = 0 zcmdBuildMapTableOfEthLink():12479 zcmdTr98MtEthLinkAdd(): Unknown case, ref181ObjName=Cellular.Interface.1 ret = 0 zcmdBuildMapTableOfEthLink():12479 zcmdTr98MtEthLinkAdd(): Unknown case, ref181ObjName=Cellular.Interface.2 ret = 0 zcmdBuildMapTableOfEthLink():12479 zcmdTr98MtEthLinkAdd(): Unknown case, ref181ObjName=Cellular.Interface.3 ret = 0 zcmdBuildMapTableOfEthLink():12479 zcmdTr98MtEthLinkAdd(): Unknown case, ref181ObjName=Cellular.Interface.4 ret = 0 zcmdBuildMapTableOfEthLink():12479 zcmdTr98MtEthLinkAdd: LAN Ethernet.Link.6 zcmdTr98ParmRtLanEthLink ret = 0 zcmdBuildMapTableOfEthLink():12479 zcmdTr98MtEthLinkAdd: LAN Ethernet.Link.7 zcmdTr98ParmRtLanEthLink ret = 0 zcmdBuildMapTableOfEthLink():12479 zcmdTr98MtEthLinkAdd: LAN Ethernet.Link.8 zcmdTr98ParmRtLanEthLink ret = 0 zcmdBuildMapTableOfEthLink():12479 zcmdTr98MtEthLinkAdd: LAN Ethernet.Link.9 zcmdTr98ParmRtLanEthLink ret = 0 zcmdBuildMapTableOfEthLink():12479 zcmdTr98MtCellIntfAdd:[11112] e_TR98_WAN_CONN_DEV:176, ret = 0 zcmdTr98MtCellIntfAdd:[11115] e_TR98_WAN_CONN_DEV:176, ret = 0 zcmdTr98MtCellIntfAdd:[11126] e_TR98_WAN_COMM_INTF_CONF:166, ret = 0 zcmdTr98MtCellIntfAdd:[11130] e_TR98_WAN_CELL_INTF_CONF:210, ret = 0 zcmdTr98MtCellIntfAdd:[11134] e_TR98_WAN_CELL_INTF_CONF_STAT:211, ret = 0 ret = 0 zcmdBuildMapTableOfCellIntf():12810 zcmdTr98MtCellIntfAdd:[11112] e_TR98_WAN_CONN_DEV:176, ret = 0 zcmdTr98MtCellIntfAdd:[11115] e_TR98_WAN_CONN_DEV:176, ret = 0 zcmdTr98MtCellIntfAdd:[11126] e_TR98_WAN_COMM_INTF_CONF:166, ret = 0 zcmdTr98MtCellIntfAdd:[11130] e_TR98_WAN_CELL_INTF_CONF:210, ret = 0 zcmdTr98MtCellIntfAdd:[11134] e_TR98_WAN_CELL_INTF_CONF_STAT:211, ret = 0 ret = 0 zcmdBuildMapTableOfCellIntf():12810 zcmdTr98MtCellIntfAdd:[11112] e_TR98_WAN_CONN_DEV:176, ret = 0 zcmdTr98MtCellIntfAdd:[11115] e_TR98_WAN_CONN_DEV:176, ret = 0 zcmdTr98MtCellIntfAdd:[11126] e_TR98_WAN_COMM_INTF_CONF:166, ret = 0 zcmdTr98MtCellIntfAdd:[11130] e_TR98_WAN_CELL_INTF_CONF:210, ret = 0 zcmdTr98MtCellIntfAdd:[11134] e_TR98_WAN_CELL_INTF_CONF_STAT:211, ret = 0 ret = 0 zcmdBuildMapTableOfCellIntf():12810 zcmdTr98MtCellIntfAdd:[11112] e_TR98_WAN_CONN_DEV:176, ret = 0 zcmdTr98MtCellIntfAdd:[11115] e_TR98_WAN_CONN_DEV:176, ret = 0 zcmdTr98MtCellIntfAdd:[11126] e_TR98_WAN_COMM_INTF_CONF:166, ret = 0 zcmdTr98MtCellIntfAdd:[11130] e_TR98_WAN_CELL_INTF_CONF:210, ret = 0 zcmdTr98MtCellIntfAdd:[11134] e_TR98_WAN_CELL_INTF_CONF_STAT:211, ret = 0 ret = 0 zcmdBuildMapTableOfCellIntf():12810 zcmdTr98MtCellAccessPointAdd:[11175] e_TR98_WAN_CELL_ACCESS_POINT:212, ret = 0 ret = 0 zcmdBuildMapTableOfCellAccessPoint():12825 zcmdTr98MtCellAccessPointAdd:[11175] e_TR98_WAN_CELL_ACCESS_POINT:212, ret = 0 ret = 0 zcmdBuildMapTableOfCellAccessPoint():12825 zcmdTr98MtCellAccessPointAdd:[11175] e_TR98_WAN_CELL_ACCESS_POINT:212, ret = 0 ret = 0 zcmdBuildMapTableOfCellAccessPoint():12825 zcmdTr98MtCellAccessPointAdd:[11175] e_TR98_WAN_CELL_ACCESS_POINT:212, ret = 0 ret = 0 zcmdBuildMapTableOfCellAccessPoint():12825 ret = 0 zcmdTr98MtWwanIntfAdd():10946 ret = 0 zcmdTr98MtWwanIntfAdd():10948 ret = 0 zcmdTr98MtWwanIntfAdd():10952 ret = 0 zcmdTr98MtWwanIntfAdd():10954 ret = 0 zcmdTr98MtWwanIntfAdd():10965 ret = 0 zcmdTr98MtWwanIntfAdd():10967 ret = 0 zcmdTr98MtWwanIntfAdd():10965 ret = 0 zcmdTr98MtWwanIntfAdd():10967 ret = 0 zcmdTr98MtWwanIntfAdd():10983 ret = 0 zcmdTr98MtWwanIntfAdd():10985 zcmdTr98MtIpIfaceAdd iid.level:1 idx:1 zcmdTr98MtCommonObjAdd: seqnum 140, oid 73560 zcmdTr181MtParmAttrSet: obj 75060, 1,1,0,0,0,0 IPAddress attr 0x0 ret = 0 zcmdBuildMapTableOfIpIface():12442 zcmdTr98MtIpIfaceAdd iid.level:1 idx:2 zcmdTr98MtParmAttrSet: obj 183, 1,1,1,0,0,0 X_ZYXEL_IGMPProxyEnable attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,1,0,0,0 DefaultGateway attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,1,0,0,0 DNSEnabled attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,1,0,0,0 DNSServers attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,1,0,0,0 X_ZYXEL_IPv6DNSEnabled attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,1,0,0,0 X_ZYXEL_IPv6DNSServers attr 0x40040000 zcmdTr98MtParmNMBuildMapping: set IPAddress default attr, 0x92 zcmdTr181MtParmAttrSet: obj 75060, 2,1,0,0,0,0 IPAddress attr 0x2 setParmAttrNodeLst Add, n=1 zcmdTr181MtParmAttrSet: obj 73560, 2,0,0,0,0,0 IPAddress attr 0x2 ret = 0 zcmdBuildMapTableOfIpIface():12442 zcmdTr98MtIpIfaceAdd iid.level:1 idx:3 zcmdTr98MtParmAttrSet: obj 183, 1,1,2,0,0,0 X_ZYXEL_IGMPProxyEnable attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,2,0,0,0 DefaultGateway attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,2,0,0,0 DNSEnabled attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,2,0,0,0 DNSServers attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,2,0,0,0 X_ZYXEL_IPv6DNSEnabled attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,2,0,0,0 X_ZYXEL_IPv6DNSServers attr 0x40040000 zcmdTr98MtParmNMBuildMapping: set IPAddress default attr, 0x92 zcmdTr181MtParmAttrSet: obj 75060, 3,1,0,0,0,0 IPAddress attr 0x2 setParmAttrNodeLst Add, n=2 zcmdTr181MtParmAttrSet: obj 73560, 3,0,0,0,0,0 IPAddress attr 0x2 ret = 0 zcmdBuildMapTableOfIpIface():12442 zcmdTr98MtIpIfaceAdd iid.level:1 idx:4 zcmdTr98MtParmAttrSet: obj 183, 1,1,3,0,0,0 X_ZYXEL_IGMPProxyEnable attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,3,0,0,0 DefaultGateway attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,3,0,0,0 DNSEnabled attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,3,0,0,0 DNSServers attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,3,0,0,0 X_ZYXEL_IPv6DNSEnabled attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,3,0,0,0 X_ZYXEL_IPv6DNSServers attr 0x40040000 zcmdTr98MtParmNMBuildMapping: set IPAddress default attr, 0x92 zcmdTr181MtParmAttrSet: obj 75060, 4,1,0,0,0,0 IPAddress attr 0x2 setParmAttrNodeLst Add, n=3 zcmdTr181MtParmAttrSet: obj 73560, 4,0,0,0,0,0 IPAddress attr 0x2 ret = 0 zcmdBuildMapTableOfIpIface():12442 zcmdTr98MtIpIfaceAdd iid.level:1 idx:5 zcmdTr98MtParmAttrSet: obj 183, 1,1,4,0,0,0 X_ZYXEL_IGMPProxyEnable attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,4,0,0,0 DefaultGateway attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,4,0,0,0 DNSEnabled attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,4,0,0,0 DNSServers attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,4,0,0,0 X_ZYXEL_IPv6DNSEnabled attr 0x40040000 zcmdTr98MtParmAttrSet: obj 183, 1,1,4,0,0,0 X_ZYXEL_IPv6DNSServers attr 0x40040000 zcmdTr98MtParmNMBuildMapping: set IPAddress default attr, 0x92 zcmdTr181MtParmAttrSet: obj 75060, 5,1,0,0,0,0 IPAddress attr 0x2 setParmAttrNodeLst Add, n=4 zcmdTr181MtParmAttrSet: obj 73560, 5,0,0,0,0,0 IPAddress attr 0x2 ret = 0 zcmdBuildMapTableOfIpIface():12442 zcmdTr98MtIpIfaceAdd iid.level:1 idx:6 zcmdTr98MtCommonObjAdd: seqnum 140, oid 73560 zcmdTr181MtParmAttrSet: obj 75060, 6,1,0,0,0,0 IPAddress attr 0x0 ret = 0 zcmdBuildMapTableOfIpIface():12442 zcmdTr98MappingAdd: add obj 75060 1,1,0,0,0,0 181/98 object mapping fail, ret= -5 ret = -5 zcmdBuildMapTableOfIpIfaceAlias():12460 zcmdTr98MappingAdd: add obj 75060 6,1,0,0,0,0 181/98 object mapping fail, ret= -5 ret = -5 zcmdBuildMapTableOfIpIfaceAlias():12460 zcmdBuildTr98ObjParamMapping: obj 99444 zcmdBuildTr98ObjParamMapping: obj 100752 zcmdTr98MtRDPartialMappingSrhWithIpIface: obj 100752 has rd IP.Interface mapping zcmdTr98MtRDPartialMappingSrhWithIpIface: obj 100752 has rd IP.Interface mapping zcmdTr98MtRDPartialMappingSrhWithIpIface: obj 100752 has rd IP.Interface mapping zcmdTr98MtRDPartialMappingSrhWithIpIface: obj 100752 has rd IP.Interface mapping zcmdBuildTr98ObjParamMapping: obj 89004 zcmdTr98MtL3FWDMapAdd oid 89004 98iid:0[0,0,0] 181iid:1[1,0,0] zcmdBuildTr98ObjParamMapping: obj 89232 zcmdTr98MtL3FWDMapAdd oid 89232 98iid:1[1,0,0] 181iid:2[1,1,0] zcmdTr98MtParmAttrSet: obj 112, 1,0,0,0,0,0 GatewayIPAddress attr 0x40040000 zcmdTr181MtParmAttrSet: obj 89232, 1,1,0,0,0,0 GatewayIPAddress attr 0x40040000 zcmdTr98MtL3FWDMapAdd oid 89232 98iid:1[2,0,0] 181iid:2[1,2,0] zcmdTr98MtParmAttrSet: obj 112, 2,0,0,0,0,0 GatewayIPAddress attr 0x40040000 zcmdTr181MtParmAttrSet: obj 89232, 1,2,0,0,0,0 GatewayIPAddress attr 0x40040000 zcmdTr98MtL3FWDMapAdd oid 89232 98iid:1[3,0,0] 181iid:2[1,3,0] zcmdTr98MtParmAttrSet: obj 112, 3,0,0,0,0,0 GatewayIPAddress attr 0x40040000 zcmdTr181MtParmAttrSet: obj 89232, 1,3,0,0,0,0 GatewayIPAddress attr 0x40040000 zcmdTr98MtL3FWDMapAdd oid 89232 98iid:1[4,0,0] 181iid:2[1,4,0] zcmdTr98MtParmAttrSet: obj 112, 4,0,0,0,0,0 GatewayIPAddress attr 0x40040000 zcmdTr181MtParmAttrSet: obj 89232, 1,4,0,0,0,0 GatewayIPAddress attr 0x40040000 zcmdBuildTr98ObjParamMapping: obj 89748 zcmdBuildTr98ObjParamMapping: obj 41148 zcmdBuildMapTableOfDhcpServer():12310 zcmdTr98MtDHCPv4PoolAdd():8638 zcmdBuildMapTableOfDhcpServer():12312 ret = 0 zcmdBuildMapTableOfDhcpServer():12314 zcmdBuildMapTableOfDhcpServer():12310 zcmdTr98MtDHCPv4PoolAdd():8638 zcmdBuildMapTableOfDhcpServer():12312 ret = 0 zcmdBuildMapTableOfDhcpServer():12314 zcmdBuildMapTableOfDhcpServer():12310 zcmdTr98MappingAdd: add obj 103176 3,0,0,0,0,0 181/98 object mapping fail, ret= 2 zcmdBuildMapTableOfDhcpServer():12312 ret = 2 zcmdBuildMapTableOfDhcpServer():12314 zcmdBuildMapTableOfDhcpServer():12310 zcmdTr98MappingAdd: add obj 103176 4,0,0,0,0,0 181/98 object mapping fail, ret= 2 zcmdBuildMapTableOfDhcpServer():12312 ret = 2 zcmdBuildMapTableOfDhcpServer():12314 zcmdBuildMapTableOfDhcpServer():12310 zcmdTr98MappingAdd: add obj 103176 5,0,0,0,0,0 181/98 object mapping fail, ret= 2 zcmdBuildMapTableOfDhcpServer():12312 ret = 2 zcmdBuildMapTableOfDhcpServer():12314 zcmdTr98MappingAddOidObjAry: obj 102780 , 1,0,0,0,0,0 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 zcmdTr98MappingAddOidObjAry: obj 102912 , 1,0,0,0,0,0 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdBuildMapTableOfV6AddrAndDhcpClient():12370 zcmdTr98MappingAddOidObjAry: obj 102780 , 2,0,0,0,0,0 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 zcmdTr98MappingAddOidObjAry: obj 102912 , 2,0,0,0,0,0 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdBuildMapTableOfV6AddrAndDhcpClient():12370 zcmdTr98MappingAddOidObjAry: obj 102780 , 3,0,0,0,0,0 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 zcmdTr98MappingAddOidObjAry: obj 102912 , 3,0,0,0,0,0 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdBuildMapTableOfV6AddrAndDhcpClient():12370 zcmdTr98MappingAddOidObjAry: obj 102780 , 4,0,0,0,0,0 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 zcmdTr98MappingAddOidObjAry: obj 102912 , 4,0,0,0,0,0 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdTr98MappingAddOidObjAry():6377 ret = 0 zcmdBuildMapTableOfV6AddrAndDhcpClient():12370 zcmdBuildTr98ObjParamMapping: obj 105516 zcmdBuildTr98ObjParamMapping: obj 106392 zcmdBuildTr98ObjParamMapping: obj 134304 zcmdBuildTr98ObjParamMapping: obj 138108 zcmdTr98MtCommonObjAdd: seqnum 235, oid 138108 zcmdTr98MtCommonObjAdd: seqnum 235, oid 138108 zcmdTr98MtCommonObjAdd: seqnum 235, oid 138108 zcmdTr98MtCommonObjAdd: seqnum 235, oid 138108 zcmdTr98MtCommonObjAdd: seqnum 235, oid 138108 zcmdTr98MtCommonObjAdd: seqnum 235, oid 138108 zcmdTr98MtCommonObjAdd: seqnum 235, oid 138108 zcmdTr98MtCommonObjAdd: seqnum 235, oid 138108 zcmdTr98MappingAdd: add obj 135168 0,0,0,0,0,0 181/98 object mapping fail, ret= -5 zcmdTr98MtCommonObjAdd: seqnum 115, oid 69192 ret = 0 zcmdBuildMapTableOfBridge():12109 zcmdTr98MtCommonObjAdd: seqnum 115, oid 69192 ret = 0 zcmdBuildMapTableOfBridge():12109 ret = 0 zcmdBuildMapTableOfBridge():12119 zcmdTr98MtBrPortAdd(): X_ZYXEL_AvailableInterfaceKey = 0 ret = 0 zcmdBuildMapTableOfBridge():12119 ret = 0 zcmdBuildMapTableOfBridge():12119 ret = 0 zcmdBuildMapTableOfBridge():12119 !!!!!! !!!!!! zcmdTr98MtObjAdd(): 181 to 98 mapping exist!, add by tr69? !!!!!! ret = 0 zcmdBuildMapTableOfBridge():12119 zcmdTr98MtCommonObjAdd: seqnum 118, oid 70644 ret = 0 zcmdBuildMapTableOfBridge():12127 zcmdTr98MtCommonObjAdd: seqnum 118, oid 70644 ret = 0 zcmdBuildMapTableOfBridge():12127 zcmdTr98MtFirewallMapAdd oid 112116 98iid:1[1,0,0] 181iid:1[1,0,0] zcmdTr98MtFirewallMapAdd oid 112368 98iid:1[1,0,0] 181iid:1[1,0,0] zcmdTr98MtWiFiMapAdd oid 64476 98iid:3[1,1,1] 181iid:1[1,0,0] zcmdTr98MtWiFiMapAdd oid 65724 98iid:2[1,1,0] 181iid:1[1,0,0] zcmdTr98MtWiFiMapAdd oid 63048 98iid:2[1,1,0] 181iid:1[1,0,0] zcmdTr98MtWiFiMapAdd oid 63708 98iid:2[1,1,0] 181iid:1[1,0,0] zcmdTr98MtWiFiMapAdd oid 64104 98iid:2[1,1,0] 181iid:1[1,0,0] zcmdTr98MtWiFiMapAdd oid 67596 98iid:0[0,0,0] 181iid:0[0,0,0] zcmdTr98MtLogSettingAdd oid 140616 98iid:0[0,0,0] 181iid:0[0,0,0] zcmdTr98MtLogSettingAdd oid 140868 98iid:1[1,0,0] 181iid:1[1,0,0] zcmdTr98MtLogSettingAdd oid 140868 98iid:1[2,0,0] 181iid:1[2,0,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[1,1,0] 181iid:2[1,1,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[1,2,0] 181iid:2[1,2,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[1,3,0] 181iid:2[1,3,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[1,4,0] 181iid:2[1,4,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[1,5,0] 181iid:2[1,5,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[1,6,0] 181iid:2[1,6,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[1,7,0] 181iid:2[1,7,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[1,8,0] 181iid:2[1,8,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[1,9,0] 181iid:2[1,9,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[1,10,0] 181iid:2[1,10,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[1,11,0] 181iid:2[1,11,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[2,1,0] 181iid:2[2,1,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[2,2,0] 181iid:2[2,2,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[2,3,0] 181iid:2[2,3,0] zcmdTr98MtLogSettingAdd oid 140976 98iid:2[2,4,0] 181iid:2[2,4,0] zcmdTr98MappingAdd: add obj 141816 0,0,0,0,0,0 181/98 object mapping fail, ret= -6 zcmdTr98MtEmailNotifyAdd oid 131172 98iid:1[1,0,0] 181iid:1[1,0,0] zcmdTr98MtEmailNotifyAdd oid 131172 98iid:1[2,0,0] 181iid:1[2,0,0] zcmdTr98MtEmailNotifyAdd oid 131172 98iid:1[3,0,0] 181iid:1[3,0,0] zcmdTr98MtEmailNotifyAdd oid 131172 98iid:1[4,0,0] 181iid:1[4,0,0] zcmdTr98MtEmailNotifyAdd oid 131172 98iid:1[5,0,0] 181iid:1[5,0,0] zcmdTr98MtEmailNotifyAdd oid 131172 98iid:1[6,0,0] 181iid:1[6,0,0] zcmdTr98MtMacFilterAdd oid 136608 98iid:0[0,0,0] 181iid:0[0,0,0] zcmdTr98MtParenCtlAdd oid 131352 98iid:0[0,0,0] 181iid:0[0,0,0] zcmdTr98MtIPLayerAdd() Enter zcmdTr98MtIPLayerAdd oid 80412 98iid:0[0,0,0] 181iid:0[0,0,0] zcmdTr98MtSecurityAdd oid 117888 98iid:0[0,0,0] 181iid:0[0,0,0] zcmdTr98MtRemoSrvAdd oid 137700 98iid:1[1,0,0] 181iid:1[1,0,0] zcmdTr98MtRemoSrvAdd oid 137700 98iid:1[2,0,0] 181iid:1[2,0,0] zcmdTr98MtRemoSrvAdd oid 137700 98iid:1[3,0,0] 181iid:1[3,0,0] zcmdTr98MtRemoSrvAdd oid 137700 98iid:1[4,0,0] 181iid:1[4,0,0] zcmdTr98MtRemoSrvAdd oid 137700 98iid:1[5,0,0] 181iid:1[5,0,0] zcmdTr98MtRemoSrvAdd oid 137700 98iid:1[6,0,0] 181iid:1[6,0,0] zcmdTr98MtRemoSrvAdd oid 137700 98iid:1[7,0,0] 181iid:1[7,0,0] Enter zcmdBuildStaticMapTable() c=0 seqnum=103 tr181Oid=14496 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 14496, tr98 103 zcmdTr98MtParmNMBuildMapping: set SoftwareVersion default attr, 0xa zcmdTr181MtParmAttrSet: obj 14496, 0,0,0,0,0,0 SoftwareVersion attr 0x2002 setParmAttrNodeLst Add, n=5 zcmdTr98MtParmNMBuildMapping: set ProvisioningCode default attr, 0x92 zcmdTr181MtParmAttrSet: obj 14496, 0,0,0,0,0,0 ProvisioningCode attr 0x2002 c=1 seqnum=108 tr181Oid=18312 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 18312, tr98 108 zcmdTr98MtParmNMBuildMapping: set ConnectionRequestURL default attr, 0xa zcmdTr181MtParmAttrSet: obj 18312, 0,0,0,0,0,0 ConnectionRequestURL attr 0x2002 setParmAttrNodeLst Add, n=6 c=2 seqnum=110 tr181Oid=21492 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 21492, tr98 110 c=3 seqnum=114 tr181Oid=68916 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 68916, tr98 114 c=4 seqnum=127 tr181Oid=80412 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 80412, tr98 127 c=5 seqnum=128 tr181Oid=82548 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 82548, tr98 128 c=6 seqnum=129 tr181Oid=82224 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 82224, tr98 129 c=7 seqnum=130 tr181Oid=76788 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 76788, tr98 130 c=8 seqnum=131 tr181Oid=77280 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 77280, tr98 131 c=9 seqnum=224 tr181Oid=132876 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 132876, tr98 224 c=10 seqnum=213 tr181Oid=111792 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 111792, tr98 213 c=11 seqnum=121 tr181Oid=92772 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 92772, tr98 121 c=12 seqnum=126 tr181Oid=97692 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 97692, tr98 126 c=13 seqnum=102 t[ 14.260000] set user_pid flag to 879 r181Oid=77784 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 77784, tr98 102 c=14 seqnum=133 tr181Oid=77784 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 77784, tr98 133 c=15 seqnum=134 tr181Oid=78924 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStat[ 14.344000] ipt_TRIGGER: module license 'unspecified' taints kernel. icMapTable(): tr[ 14.356000] Disabling lock debugging due to kernel taint 181 78924, tr98 134 c=16 seqnum=135 tr181Oid=79344 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 7934[ 14.400000] xt_time: kernel timezone is -0000 4, tr98 135 c=17 seqnum=242 tr181Oid=135588 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 135588, tr98 242 c=18 seqnum=219 tr181Oid=132432 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 132432, tr98 219 c=19 seqnum=220 tr181Oid=144300 ret = 0 zcmdBuildStaticMapTable():12921 ret = 0 zcmdBuildStaticMapTable():12923 zcmdBuildStaticMapTable(): tr181 144300, tr98 220 End of build tr98 tr181 tables 2024-07-11 00:00:03 zcmd<826>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 1 bind server socket 3 on /var/lib/.sock/zcfg_sockaddr1 successfully 2024-07-11 00:00:03 zcmd<868>, zcmd_config_apply.c:1645, zcmdConfigApplyTask(), INFO: thread starts 2024-07-11 00:00:03 zcmd<868>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 69 bind server socket 4 on /var/lib/.sock/zcfg_sockaddr69 successfully 2024-07-11 00:00:03 zcmd<869>, zcmd_config_apply.c:1563, zcmdModuleConfigHandleTask(), INFO: thread starts 2024-07-11 00:00:03 zcmd<869>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 71 bind server socket 5 on /var/lib/.sock/zcfg_sockaddr71 successfully /bin/sh: dsldiagd: not found 2024-07-11 00:00:03 esmd<879>, esmd.c:2068, main(), INFO: ESMD Start ESMD msg server init... 2024-07-11 00:00:03 esmd<879>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 2 bind server socket 0 on /var/lib/.sock/zcfg_sockaddr2 successfully [ESMD] Initial kernel monitor ... kernelFd=6 zyUtilUpdateWWANPackage, not support in current platform! 2024-07-11 00:00:03 esmd<879>, esmd.c:2090, main(), WARNING: fail to update WWAN package 2024-07-11 00:00:03 esmd<884>, esmd.c:1553, _esmd_thread(), INFO: ESMD ground thread starts 2024-07-11 00:00:03 esmd<885>, esmd.c:1934, timer_thread(), INFO: thread starts zyUtilTcpSvrInit 2024-07-11 00:00:03 esmd<884>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 68 bind server socket 7 on /var/lib/.sock/zcfg_sockaddr68 successfully 2024-07-11 00:00:03 esmd<883>, esmd.c:1545, _esmd_thread(), INFO: ESMD usr config thread starts FW_WATCHER Start 2024-07-11 00:00:03 zcmd<889>, zcmd.c:6125, zcmdActiveZtr69(), INFO: thread starts zcmdBeInit(): DL opening... Initial begui_customization.... Initial bedevice.... beIptablesInit() Jessie Enter /tmp/iptable_init.sh beIptablesModuleInsert() Jessie Enter beIptablesInit() Jessie iptables -F iptables -X iptables -Z beIptablesInit() Jessie iptables -t nat -F iptables -t nat -X iptables -t nat -Z beIptablesInit() Jessie iptables -t mangle -F iptables -t mangle -X iptables -t mangle -Z insmod: can't insert '/lib/modules/3.10.14/ip_tables.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ipt_REJECT.ko': File exists insmod: can't insert '/lib/modules/3.10.14/xt_multiport.ko': File exists insmod: can't insert '/lib/modules/3.10.14/nfnetlink.ko': File exists insmod: can't insert '/lib/modules/3.10.14/xt_state.ko': File exists insmod: can't insert '/lib/modules/3.10.14/xt_limit.ko': File exists insmod: can't insert '/lib/modules/3.10.14/xt_mac.ko': File exists insmod: can't insert '/lib/modules/3.10.14/xt_LOG.ko': File exists insmod: can't insert '/lib/modules/3.10.14/xt_TCPMSS.ko': File exists insmod: can't insert '/lib/modules/3.10.14/xt_iprange.ko': File exists insmod: can't insert '/lib/modules/3.10.14/xt_SKIPLOG.ko': No such file or directory insmod: can't insert '/lib/modules/3.10.14/xt_AUTOMAP.ko': No such file or directory insmod: can't insert '/lib/modules/3.10.14/xt_policer.ko': No such file or directory insmod: can't insert '/lib/modules/3.10.14/ip6_tables.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ip6table_filter.ko': File exists insmod: can't insert '/lib/modules/3.10.14/nf_defrag_ipv6.ko': File exists insmod: can't insert '/lib/modules/3.10.14/nf_conntrack_ipv6.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ip6table_mangle.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ip6table_raw.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ip6_queue.ko': No such file or directory insmod: can't insert '/lib/modules/3.10.14/ip6t_eui64.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ip6t_mh.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ip6t_frag.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ip6t_rt.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ip6t_REJECT.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ip6t_hbh.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ip6t_ah.ko': File exists insmod: can't insert '/lib/modules/3.10.14/ip6t_ipv6header.ko': File exists beIptablesInit() Jessie run sysCmd=/bin/sh /tmp/iptable_init.sh, then call zyUtilInitIptablesConfig() beIptablesInit() Jessie CHAIN_INPUT chain->name=INPUT_TEST beIptablesInit() Jessie CHAIN_INPUT chain->name=INPUT_GUESTAP beIptablesInit() Jessie CHAIN_INPUT chain->name=INPUT_DOS beIptablesInit() Jessie CHAIN_INPUT chain->name=INPUT_SRV beIptablesInit() Jessie CHAIN_INPUT chain->name=INPUT_SP_DOMAIN beIptablesInit() Jessie CHAIN_INPUT chain->name=INPUT_CWMP beIptablesInit() Jessie CHAIN_INPUT chain->name=INPUT_REMOMGMT beIptablesInit() Jessie CHAIN_INPUT chain->name=INPUT_CF beIptablesInit() Jessie CHAIN_INPUT chain->name=INPUT_GENERAL beIptablesInit() Jessie CHAIN_INPUT chain->name=INPUT_RIP beIptablesInit() Jessie CHAIN_OUTPUT chain->name=OUTPUT_GENERAL beIptablesInit() Jessie CHAIN_OUTPUT chain->name=OUTPUT_SRV beIptablesInit() Jessie CHAIN_FORWARD chain->name=FORWARD_DMZ beIptablesInit() Jessie CHAIN_FORWARD chain->name=FORWARD_GUESTAP beIptablesInit() Jessie CHAIN_FORWARD chain->name=FORWARD_PARENTAL beIptablesInit() Jessie CHAIN_FORWARD chain->name=FORWARD_INTBLCK beIptablesInit() Jessie CHAIN_FORWARD chain->name=FORWARD_CF beIptablesInit() Jessie CHAIN_FORWARD chain->name=FORWARD_GENERAL beIptablesInit() Jessie CHAIN_FORWARD chain->name=FORWARD_DOS beIptablesInit() Jessie CHAIN_FORWARD chain->name=FORWARD_SRV beIptablesInit() Jessie CHAIN_FORWARD chain->name=FORWARD_NAT beIptablesInit() Jessie CHAIN_FORWARD chain->name=FORWARD_PM_UPNP beIptablesInit() Jessie CHAIN_FORWARD chain->name=FORWARD_POLICY beIptablesInit() Jessie CHAIN_PREROUTING chain->name=WEB_REDIRECT beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j WEB_REDIRECT beIptablesInit() Jessie CHAIN_PREROUTING chain->name=PCP_WEB_REDIRECT beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j PCP_WEB_REDIRECT beIptablesInit() Jessie CHAIN_PREROUTING chain->name=PR_SP_DOMAIN beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j PR_SP_DOMAIN beIptablesInit() Jessie CHAIN_PREROUTING chain->name=PR_SRV beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j PR_SRV beIptablesInit() Jessie CHAIN_PREROUTING chain->name=PR_REMOMGMT beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j PR_REMOMGMT beIptablesInit() Jessie CHAIN_PREROUTING chain->name=PR_SRV_DHCP beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j PR_SRV_DHCP beIptablesInit() Jessie CHAIN_PREROUTING chain->name=PR_CWMP beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j PR_CWMP beIptablesInit() Jessie CHAIN_PREROUTING chain->name=PR_GENERAL beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j PR_GENERAL beIptablesInit() Jessie CHAIN_PREROUTING chain->name=PR_DNS_REDIRECT beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j PR_DNS_REDIRECT beIptablesInit() Jessie CHAIN_PREROUTING chain->name=NAT_PR_ADDR_MAPPING beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j NAT_PR_ADDR_MAPPING beIptablesInit() Jessie CHAIN_PREROUTING chain->name=NAT_PORT_MAPPING beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j NAT_PORT_MAPPING beIptablesInit() Jessie CHAIN_PREROUTING chain->name=NAT_PORT_TRIGGER beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j NAT_PORT_TRIGGER beIptablesInit() Jessie CHAIN_PREROUTING chain->name=NAT_PORT_MAPPING_UPNP beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j NAT_PORT_MAPPING_UPNP beIptablesInit() Jessie CHAIN_PREROUTING chain->name=PR_DMZ beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A PREROUTING -j PR_DMZ beIptablesInit() Jessie CHAIN_POSTROUTING chain->name=NAT_PO_ADDR_MAPPING beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A POSTROUTING -j NAT_PO_ADDR_MAPPING beIptablesInit() Jessie CHAIN_POSTROUTING chain->name=NAT_PO_PORT_MAPPING beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A POSTROUTING -j NAT_PO_PORT_MAPPING beIptablesInit() Jessie CHAIN_POSTROUTING chain->name=NAT_PO_WAN beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A POSTROUTING -j NAT_PO_WAN beIptablesInit() Jessie CHAIN_POSTROUTING chain->name=NAT_PO_DMZ beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A POSTROUTING -j NAT_PO_DMZ beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A NAT_PORT_MAPPING_UPNP -j NAT_PORT_MAPPING_UPNP_1 beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A NAT_PORT_MAPPING_UPNP -j NAT_PORT_MAPPING_UPNP_2 beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A NAT_PORT_MAPPING_UPNP -j NAT_PORT_MAPPING_UPNP_3 beIptablesNatChainCreateLink() Jessie Enter beIptablesNatChainCreateLink() Jessie -A NAT_PORT_MAPPING_UPNP -j NAT_PORT_MAPPING_UPNP_4 beIptablesInit() Jessie call zyUtilRestoreIptCfg() beIptablesInit() Jessie call beIppassIpv6AclChainInit() [beIppassIpv6AclChainCreated]set created beIptablesInit() Jessie call beIppassIpv4AclChainInit() [beIppassIpv4AclChainCreated]set created beEbtablesInit() Jessie Enter beEbtablesInit() Jessie run RUN_EBT_FILE=/tmp/ebtable_init.sh Chain MACFILTER already exists. devObj->DeviceSummary = Device:2.0[]), Initial belog.... killall: tty_log_echo: no process killed killall: mailsend: no process killed Set interval time = 60 second killall: syslog-ng: no process killed Error resolving user; user='root' Initial besysinfo.... Initial beaccount.... root set radom DefaultPassword! root set radom Password! zyUtilIGetMrdPasswd, Error:[Index 1] No password in MRD or the data is broken. supervisor set radom DefaultPassword! supervisor set radom Password! zyUtilIGetMrdPasswd, Error:[Index 1] No password in MRD or the data is broken. zyUtilIGetMrdPasswd, Error:[Index 0] No password in MRD or the data is broken. beConfigBoot(687) set admin random password. beConfigBoot(690) set admin default random password. Initial bedevinfo.... zcmdTr181MtParmAttrSet: obj 14496, 0,0,0,0,0,0 UpTime attr 0xc zyUtilIGetFirmwareVersion: Function executed zyUtilIGetBaseMAC: Function executed beConfigBoot:219 bootingFlag in NVRAM: 0. beConfigBoot:228 ActiveFirmwareImage Device.DeviceInfo.FirmwareImage.1. beConfigBoot:229 BootFirmwareImage Device.DeviceInfo.FirmwareImage.1. zcmdTr181MtParmAttrSet: obj 14496, 0,0,0,0,0,0 ManufacturerOUI attr 0x8 zcmdTr181MtParmAttrSet: obj 14496, 0,0,0,0,0,0 SerialNumber attr 0x8 2024-07-11 00:00:05 zcmd<888>, zcfg_msg.c:419, _msg_send(), ERROR: fail to sendto /var/lib/.sock/zcfg_sockaddr9, errno = 2(No such file or directory), srcEid = 1, dstEid = 9, type = 273 without reply, oid = 0 2024[ 16.644000] FFFFFFD4:1A:FFFFFFD1:FFFFFFD8:FFFFFF96:54 -07-11 00:00:05 [ 16.660000] Raeth v3.1 (zcmd<888>, zcfg_Taskletmsg.c:822, zcfg_) msg_sendAndGetReply(), ERROR: fail to send message. ret = -5 In[ 16.684000] phy_free_head is 0x115a6000!!! valid usage! #nv[ 16.692000] phy_free_tail_phy is 0x115a7ff0!!! ram set DEV_SERI[ 16.704000] txd_pool=b15a8000 phy_txd_pool=115A8000 ALNUM=S220Z30000[ 16.716000] ei_local->skb_free start address is 0x8fdba6dc. 664 Invalid us[ 16.732000] free_txd: 115a8010, ei_local->cpu_ptr: 115A8000 age! #nvram set [ 16.744000] POOL HEAD_PTR | DMA_PTR | CPU_PTR DEV_MANUFACTURER[ 16.756000] ----------------+---------+-------- OUI=D41AD1 Inv[ 16.768000] 0xb15a8000 0x115A8000 0x115A8000 alid usage! #nvr[ 16.780000] [ 16.780000] phy_qrx_ring = 0x11520000, qrx_ring = 0xb1520000 am set DEV_MANUFACTURER=ZYXEL [ 16.800000] [ 16.800000] phy_rx_ring0 = 0x115b0000, rx_ring0 = 0xb15b0000 no section named "DEV_MODELDESCRIBE=Outdoor" Invalid usage! #nvram set DEV_MODELNAME=LTE7490-M904 Invalid usage! #nvram set D[ 16.840000] MT7530 Reset Completed!! EV_PRODUCTNAME=L[ 16.848000] change HW-TRAP to 0x17c8f TE7490-M904 In[ 16.856000] set LAN/WAN LLLLW valid usage! #nvram set DEV_SOFT[ 16.868000] GMAC1_MAC_ADRH -- : 0x0000d41a WARE_VER=1.00(AB[ 16.880000] GMAC1_MAC_ADRL -- : 0xd1d89654 QY.8)C0 Invali[ 16.888000] GDMA2_MAC_ADRH -- : 0x0000000c d usage! #nvram [ 16.900000] GDMA2_MAC_ADRL -- : 0x4328803f set DEV_HARDWARE[ 16.912000] eth3: ===> VirtualIF_open _VER=LTE7490-M90[ 16.920000] MT7621 GE2 link rate to 1G 4 Initial beet[ 16.928000] CDMA_CSG_CFG = 81000000 [ 16.928000] GDMA1_FWD_CFG = 20710000 [ 16.928000] GDMA2_FWD_CFG = 20710000 hlink.... Initial beethintf.... zcmdTr181MtParmAttrSet: obj 39564, 1,0,0,0,0,0 MACAddress attr 0x8 switch reg write offset=30e0, value=3f27 [ 17.032000] switch register base addr to 0xbe110100 [ 17.108000] write offset 0x0, value 0x2305e33b [ 17.188000] switch register base addr to 0xbe110200 [ 17.268000] write offset 0x0, value 0x2305e33b [ 17.352000] switch register base addr to 0xbe100f0c [ 17.420000] Started WatchDog Timer. [ 17.436000] write offset 0x0, value 0x8000800 [ 17.516000] switch register base addr to 0xbe100f10 [ 17.600000] write offset 0x0, value 0x8000800 [ 17.676000] switch register base addr to 0xbe100f14 [ 17.756000] write offset 0x0, value 0x800080 beConfigBoot() getLowerLayerIntfName fail beIpIfaceSetMtu() ifconfig mtu 1500 ifconfig: bad address '1500' beIpIfaceSetMtu() ifconfig br0 mtu 1500 ifconfig: SIOCSIFMTU: No such device beConfigBoot() getLowerLayerIntfName fail beIpIfaceSetMtu() ifconfig mtu 1500 ifconfig: bad address '1500' beIpIfaceSetMtu() ifconfig wwan0 mtu 1500 beConfigBoot() getLowerLayerIntfName fail beIpIfaceSetMtu() ifconfig mtu 1500 ifconfig: bad address '1500' beIpIfaceSetMtu() ifconfig wwan1 mtu 1500 beConfigBoot() getLowerLayerIntfName fail beIpIfaceSetMtu() ifconfig mtu 1500 ifconfig: bad address '1500' beIpIfaceSetMtu() ifconfig wwan2 mtu 1500 beConfigBoot() getLowerLayerIntfName fail beIpIfaceSetMtu() ifconfig mtu 1500 ifconfig: bad address '1500' beIpIfaceSetMtu() ifconfig wwan3 mtu 1500 beConfigBoot() getLowerLayerIntfName fail beIpIfaceSetMtu() ifconfig mtu 1500 ifconfig: bad address '1500' beIpIfaceSetMtu() ifconfig br1 mtu 1500 ifconfig: SIOCSIFMTU: No such device zcmdTr181MtParmAttrSet: obj 39564, 1,0,0,0,0,0 Status attr 0x8 beEthSetMediaType: triggered but not support.. beCreateInterfaceDownScript: triggered but not support.. Initial bewifi_radio.... zyUtilIGetFirmwareVersion: Function executed zyUtilIGetFirmwareVersion: Function executed zyUtilIGetBaseMAC: Function executed zyUtilIGetMrdPasswd, Error:[Index 0] No password in MRD or the data is broken. zyUtilIGetFirmwareVersion: Function executed zcmdTr181MtParmAttrSet: obj 64476, 1,0,0,0,0,0 PreSharedKey attr 0x1080 zcmdTr181MtParmAttrSet: obj 64476, 1,0,0,0,0,0 KeyPassphrase attr 0x1090 zyUtilIGetBaseMAC: Function executed zcmdTr181MtParmAttrSet: obj 65724, 1,0,0,0,0,0 ConfigMethodsEnabled attr 0x90 zcmdTr181MtParmAttrSet: obj 64104, 1,0,0,0,0,0 WMMCapability attr 0x8 zcmdTr181MtParmAttrSet: obj 64104, 1,0,0,0,0,0 UAPSDCapability attr 0x8 zcmdTr181MtParmAttrSet: obj 63048, 1,0,0,0,0,0 Status attr 0x8 zcmdTr181MtParmAttrSet: obj 63048, 1,0,0,0,0,0 Name attr 0x8 zcmdTr181MtParmAttrSet: obj 63048, 1,0,0,0,0,0 BSSID attr 0x8 zcmdTr181MtParmAttrSet: obj 63048, 1,0,0,0,0,0 SSID attr 0x90 Initial bewifi_ssid.... Initial bewifi_ap.... 2024-07-11 00:00:07 zcmd<888>, zcmd_config_apply.c:846, zcmdPreSetApply(), ERROR: Get current object fail, oid[65724] eid[1] Initial bebridging.... Initial bebridgingbr.... zcmdTr181MtParmAttrSet: obj 69192, 2,0,0,0,0,0 PortNumberOfEntries attr 0x8 Initial bebridgePort.... brctl: bridge br0: No such device beBrPortEnable() Jessie brPort->LowerLayers=WiFi.SSID.1, brPort->PVID=1 beBrPortEnable() Jessie brPortPathName=Bridging.Bridge.1.Port.3 beBrPortEnable() Jessie ethIfaceName=ra0 ifconfig: SIOCGIFFLAGS: No such device brctl: bridge br0: No such device or address zyUtilIGetBaseMAC: Function executed brctl: invalid argument 'quickleave' to 'brctl' [ 18.468000] TX_BCN DESC bbc2e000 size = 320 [ 18.476000] RX[0] DESC bbc30000 size = 2048 [ 18.488000] RX[1] DESC bbc31000 size = 2048 [ 18.504000] cfg_mode=9 [ 18.508000] cfg_mode=9 [ 18.512000] wmode_band_equal(): Band Equal! [ 18.520000] APSDCapable[0]=1 [ 18.528000] APSDCapable[1]=1 [ 18.532000] APSDCapable[2]=1 [ 18.540000] APSDCapable[3]=1 [ 18.544000] APSDCapable[4]=1 [ 18.552000] APSDCapable[5]=1 [ 18.556000] APSDCapable[6]=1 [ 18.564000] APSDCapable[7]=1 [ 18.568000] APSDCapable[8]=1 [ 18.572000] APSDCapable[9]=1 [ 18.580000] APSDCapable[10]=1 [ 18.584000] APSDCapable[11]=1 [ 18.592000] APSDCapable[12]=1 [ 18.596000] APSDCapable[13]=1 [ 18.604000] APSDCapable[14]=1 [ 18.608000] APSDCapable[15]=1 [ 18.616000] default ApCliAPSDCapable[0]=1 [ 18.624000] Key1Str is Invalid key length(0) or Type(1) [ 18.636000] Key2Str is Invalid key length(0) or Type(1) [ 18.644000] Key3Str is Invalid key length(0) or Type(1) [ 18.656000] Key4Str is Invalid key length(0) or Type(1) [ 18.684000] [PMF]Set_PMFMFPC_Proc:: apidx=0, Desired MFPC=0 [ 18.696000] [PMF]Set_PMFMFPR_Proc:: apidx=0, Desired MFPR=0 [ 18.708000] [PMF]Set_PMFSHA256_Proc:: apidx=0, Desired PMFSHA256=0 [ 18.720000] FW Version:_mt7603mp [ 18.724000] FW Build Date:20150624233050 [ 18.732000] CmdAddressLenReq:(ret = 0) [ 18.744000] CmdFwStartReq: override = 1, address = 1048576 [ 18.752000] CmdStartDLRsp: WiFI FW Download Success [ 18.772000] AsicDMASchedulerInit(): DMA Scheduler Mode=0(LMAC) [ 18.784000] efuse_probe: efuse = 10000002 [ 18.792000] RtmpChipOpsEepromHook::e2p_type=0, inf_Type=5 [ 18.804000] RtmpEepromGetDefault::e2p_dafault=1 [ 18.812000] NVM is efuse and the information is too less to bring up the interface [ 18.828000] Force to use Flash mode [ 18.836000] RtmpChipOpsEepromHook: E2P type(2), E2pAccessMode = 0, E2P default = 1 [ 18.852000] NVM is FLASH mode, flash_offset = 0x0 [ 18.860000] 1. Phy Mode = 14 [ 19.028000] Country Region from e2p = ffff [ 19.036000] tssi_1_target_pwr_g_band = 28 [ 19.044000] 2. Phy Mode = 14 [ 19.048000] 3. Phy Mode = 14 [ 19.056000] NICInitPwrPinCfg(14): Not support for HIF_MT yet! [ 19.068000] NICInitializeAsic(584): Not support rtmp_mac_sys_reset () for HIF_MT yet! [ 19.084000] mt_mac_init()--> [ 19.088000] mt7603_init_mac_cr()--> [ 19.096000] AsicSetMacMaxLen(1862): Set the Max RxPktLen=1024! [ 19.108000] <--mt_mac_init() [ 19.112000] WTBL Segment 1 info: [ 19.120000] MemBaseAddr/FID:0x28000/0 [ 19.128000] EntrySize/Cnt:32/128 [ 19.132000] WTBL Segment 2 info: [ 19.140000] MemBaseAddr/FID:0x40000/0 [ 19.148000] EntrySize/Cnt:64/128 [ 19.156000] WTBL Segment 3 info: [ 19.160000] MemBaseAddr/FID:0x42000/64 [ 19.168000] EntrySize/Cnt:64/128 [ 19.176000] WTBL Segment 4 info: [ 19.184000] MemBaseAddr/FID:0x44000/128 [ 19.192000] EntrySize/Cnt:32/128 [ 19.196000] MtAsicACQueue: Write CR:21510, Value=10421 [ 19.208000] MtAsicACQueue: Write CR:21500, Value=10421 [ 19.220000] AntCfgInit(2556): Not support for HIF_MT yet! [ 19.228000] MCS Set = ff ff 00 00 01 [ 19.244000] mt7603_switch_channel(): Switch to Ch#4(2T2R), BBP_BW=0 [ 19.256000] SYNC - BBP R4 to 20MHz.l [ 19.604000] mt7603_switch_channel(): Switch to Ch#5(2T2R), BBP_BW=0 [ 19.616000] SYNC - BBP R4 to 20MHz.l [ 20.016000] mt7603_switch_channel(): Switch to Ch#6(2T2R), BBP_BW=0 [ 20.028000] SYNC - BBP R4 to 20MHz.l [ 20.360000] mt7603_switch_channel(): Switch to Ch#7(2T2R), BBP_BW=0 [ 20.372000] SYNC - BBP R4 to 20MHz.l [ 20.684000] mt7603_switch_channel(): Switch to Ch#8(2T2R), BBP_BW=0 [ 20.700000] SYNC - BBP R4 to 20MHz.l [ 21.020000] mt7603_switch_channel(): Switch to Ch#9(2T2R), BBP_BW=0 [ 21.032000] SYNC - BBP R4 to 20MHz.l [ 21.352000] mt7603_switch_channel(): Switch to Ch#10(2T2R), BBP_BW=0 [ 21.364000] SYNC - BBP R4 to 20MHz.l [ 21.676000] mt7603_switch_channel(): Switch to Ch#11(2T2R), BBP_BW=0 [ 21.688000] SYNC - BBP R4 to 20MHz.l [ 22.012000] [PMF]ap_pmf_init:: apidx=0, MFPC=0, MFPR=0, SHA256=0 [ 22.024000] AsicSetRalinkBurstMode(4188): Not support for HIF_MT yet! [ 22.036000] RTMPSetPiggyBack(924): Not support for HIF_MT yet! [ 22.072000] mt7603_switch_channel(): Switch to Ch#11(2T2R), BBP_BW=0 [ 22.084000] AsicSetTxPreamble(4175): Not support for HIF_MT yet! [ 22.096000] The 2-BSSID mode is enabled, the BSSID byte5 MUST be the multiple of 2 [ 22.108000] AsicSetPreTbtt(): bss_idx=0, PreTBTT timeout = 0xa0 [ 22.120000] Main bssid = d4:1a:d1:d8:96:55 [ 22.132000] <==== rt28xx_init, Status=0 [ 22.140000] @@@ ed_monitor_exit : ===> [ 22.148000] @@@ ed_monitor_exit : <=== [ 22.156000] mt7603_set_ed_cca: TURN OFF EDCCA mac 0x10618 = 0xd7083f0f [ 22.168000] WiFi Startup Cost (ra0): 3.700s [ 22.212000] device ra0 entered promiscuous mode brctl: bridge br1: No such device beBrPortEnable() Jessie brPort->LowerLayers=Ethernet.Interface.1, brPort->PVID=1 beBrPortEnable() Jessie brPortPathName=Bridging.Bridge.2.Port.2 beBrPortEnable() Jessie ethIfaceName=eth2 ifconfig: SIOCGIFFLAGS: No such device brctl: bridge br1: No such device or address zyUtilIGetBaseMAC: Function executed brctl: invalid argument 'quickleave' to 'brctl' [ 22.648000] device eth2 entered promiscuous mode Initial bebridgeFilter.... Initial bewifi.... Initial beipiface.... zyUtilIGetNthMAC: Function executed zyUtilIGetNumberOfMAC: Function executed zyUtilIGetNthMAC: Function executed zyUtilIGetNumberOfMAC: Function executed zyUtilIGetNthMAC: Function executed zyUtilIGetNumberOfMAC: Function executed zyUtilIGetNthMAC: Function executed zyUtilIGetNumberOfMAC: [ 22.960000] br0: port 1(ra0) entered forwarding state Function execute[ 22.972000] br0: port 1(ra0) entered forwarding state d zyUtilIGetNthMAC: Function executed zyUtilIGetNumberOfMAC: Function executed zyUtilIGetNthMAC: Function executed zyUtilIGetNumberOfMAC: Function executed zyUtilIGetNthMAC: Function executed zyUtilIGetNumberOfMAC: Function executed zyUtilIGetNthMAC: Function executed zyUtilIGetNumberOfMAC: Function executed zywifid:Config> [ERROR] zyWifiUpdateLanInfo:458: No wifi interface on module(ECN). zywifid:Config> [ERROR][ECN] zyecn_set_single_sku:2588: Error input argument. beIpIfaceSetMtu() ifconfig ra0 mtu 1500 beIpIfaceSetMtu() ifconfig br0 mtu 1500 beConfigBoot() getLowerLayerIntfName fail beIpIfaceSetMtu() ifconfig mtu 1500 ifconfig: bad address '1500' beIpIfaceSetMtu() ifconfig wwan0 mtu 1500 beConfigBoot() getLowerLayerIntfName fail beIpIfaceSetMtu() ifconfig mtu 1500 ifconfig: bad address '1500' beIpIfaceSetMtu() ifconfig wwan1 mtu 1500 beConfigBoot() getLowerLayerIntfName fail beIpIfaceSetMtu() ifconfig mtu 1500 ifconfig: bad address '1500' beIpIfaceSetMtu() ifconfig wwan2 mtu 1500 beConfigBoot() getLowerLayerIntfName fail beIpIfaceSetMtu() ifconfig mtu 1500 ifconfig: bad address '1500' beIpIfaceSetMtu() ifconfig wwan3 mtu 1500 [ 23.360000] br1: port 1(eth2) entered forwarding state [ 23.372000] br1: port 1(eth2) entered forwarding state beIpIfaceSetMtu() ifconfig eth2 mtu 1500 beIpIfaceSetMtu() ifconfig br1 mtu 1500 zcfgBeWanInitIntfMark : Enter zcfgBeWanInitIntfMark: Init IfMark Done !! Initial benatIntf.... Initial bev4addr.... Initial bev6addr.... Initial bev6prefix.... Initial beusbhost.... Initial beusbintf.... Initial beusbport.... Initial berouter.... Initial berainfo.... Initial bedhcp4_server.... beConfigBoot() Jessie Boot Dhcp4Server Initial bedhcp4_serverpool.... Initial bedhcp4_serverpool_staticaddr.... Initial bedhcp4_serverpool_option.... Initial bedhcp4_serversubnet.... restart DNSMASQ... killall: dnsmasq: no process killed 2024-07-11 00:00:13 dnsmasq<1453>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 23 bind server socket 6 on /var/lib/.sock/zcfg_sockaddr23 successfully Set: phy[2].reg[0] = 1940 [ 24.636000] The 2-BSSID mode is enabled, the BSSID byte5 MUST be the multiple of 2 [ 24.652000] MTPciPollTxRxEmpty [ 25.272000] AsicSetPreTbtt(): bss_idx=0, PreTBTT timeout = 0x0 [ 25.284000] RTMPSetPiggyBack(924): Not support for HIF_MT yet! [ 25.300000] RT28xxPciAsicRadioOff(): Not support for HIF_MT yet! [ 25.312000] RTMPDrvClose call RT28xxPciAsicRadioOff fail !! [ 25.324000] tx_kickout_fail_count = 0 [ 25.332000] tx_timeout_fail_count = 0 [ 25.340000] rx_receive_fail_count = 0 [ 25.348000] alloc_cmd_msg = 74 [ 25.352000] free_cmd_msg = 74 [ 25.364000] br0: port 1(ra0) entered disabled state Set: phy[2].reg[0] = 1040 Initial bedhcp4_relay.... Initial bedhcp6_server.... Initial bedhcp6_serverpool.... Initial bedhcp6_relay.... Initial bevlanTerm.... Initial bepppiface.... Initial bepppifaceipcp.... Initial bedhcp4_client.... Initial bedhcp6_client.... 2024-07-11 00:00:14 zcmd<888>, be_dhcp6_client_config_init.c:29, beConfigBoot(), INFO: boot Dhcp6 Client Initial beradvd.... /bin/sh: /userfs/bin/ppe: not found /bin/sh: /userfs/bin/ppe: not found /bin/sh: /userfs/bin/hw_nat: not found radvdStart : Enter radvdConfCreate : Enter Interface doesn't accept private ioctl... set (8BE2): Network is down /bin/sh: /usr/bin/sys: not found /bin/sh: /usr/bin/sys: not found brctl: bridge br0: Device or resource busy radvdAppInfoGet : Can't get WanIfName radvdStart : radvdConfCreate is Fail! /bin/sh: wscd: not found Initial bedns.... Initial bedns_route.... Initial bedns_server.... Initial benat_port_map.... Initial benat_port_trigger.... Initial benat_addr_mapping.... Initial begre_tunnel.... modprobe ip_gre modprobe: module ip_gre not found in modules.dep Initial besessCtl.... /bin/sh: can't create /proc/sys/net/netfilter/nf_session_ctl_max: nonexistent directory /bin/sh: can't create /proc/zy_nf_ct_udp_STB_port: Permission denied /bin/sh: can't create /proc/zy_nf_ct_udp_STB_timeout: Permission denied Initial befirewall.... beFirewallV4Execute() Jessie Enter beFirewallConfig() Jessie Enter inserGeneralRule() Jessie Enter insertConfigRule() Jessie Enter zcmdTr181MtParmAttrSet: obj 111792, 0,0,0,0,0,0 Type attr 0x8 zcmdTr181MtParmAttrSet: obj 111792, 0,0,0,0,0,0 LevelNumberOfEntries attr 0x8 zcmdTr181MtParmAttrSet: obj 111792, 0,0,0,0,0,0 ChainNumberOfEntries attr 0x8 insertConfigAdvanced() Jessie Enter insertChainRuleConfig() Jessie Enter insertConfigLow() Jessie Enter insertConfigLow() Jessie :LevelLow - insertConfigLow() Jessie -A FORWARD_POLICY -j LevelLow insertConfigLow() Jessie -A LevelLow -i br+ -j ACCEPT insertConfigLow() Jessie -A LevelLow ! -i br+ -j DROP insertServiceRule() Jessie Enter insertRuleCwmp() Jessie Enter zcmdTr181MtParmAttrSet: obj 102312, 1,0,0,0,0,0 SentOptionNumberOfEntries attr 0x8 zcmdTr181MtParmAttrSet: obj 102312, 1,0,0,0,0,0 ReqOptionNumberOfEntries attr 0x8 zcmdTr181MtParmAttrSet: obj 102312, 2,0,0,0,0,0 SentOptionNumberOfEntries attr 0x8 zcmdTr181MtParmAttrSet: obj 102312, 2,0,0,0,0,0 ReqOptionNumberOfEntries attr 0x8 zcmdTr181MtParmAttrSet: obj 102312, 3,0,0,0,0,0 SentOptionNumberOfEntries attr 0x8 zcmdTr181MtParmAttrSet: obj 102312, 3,0,0,0,0,0 ReqOptionNumberOfEntries attr 0x8 zcmdTr181MtParmAttrSet: obj 102312, 4,0,0,0,0,0 SentOptionNumberOfEntries attr 0x8 zcmdTr181MtParmAttrSet: obj 102312, 4,0,0,0,0,0 ReqOptionNumberOfEntries attr 0x8 [beIppassIpv6AclChainCreated]set created [beIppassIpv6AclChainCreated]set created [beIppassIpv4AclChainCreated]set created [beIppassIpv4AclChainCreated]set created beFirewallConfig() Jessie Enter inserGeneralRule() Jessie Enter insertConfigRule() Jessie Enter insertConfigAdvanced() Jessie Enter insertChainRuleConfig() Jessie Enter insertConfigLow() Jessie Enter insertConfigLow() Jessie :LevelLow - insertConfigLow() Jessie -A FORWARD_POLICY -j LevelLow insertConfigLow() Jessie -A LevelLow -i br+ -j ACCEPT insertConfigLow() Jessie -A LevelLow ! -i br+ -j DROP insertServiceRule() Jessie Enter insertRuleCwmp() Jessie Enter [beIppassIpv6AclChainCreated]set created [beIppassIpv6AclChainCreated]set created [beIppassIpv4AclChainCreated]set created [beIppassIpv4AclChainCreated]set created beDosConfig() Jessie Enter flushDosChain() Jessie Enter beDosConfig() Jessie Enter flushDosChain() Jessie Enter Initial betr69.... Initial beddns.... Initial betime.... Initial bediagnostic.... zcmdTr181MtParmAttrSet: obj 77280, 0,0,0,0,0,0 Timeout attr 0x80 zcmdTr181MtParmAttrSet: obj 77280, 0,0,0,0,0,0 DataBlockSize attr 0x80 zcmdTr181MtParmAttrSet: obj 77280, 0,0,0,0,0,0 MaxHopCount attr 0x80 Initial beschedule.... Initial beparenCtl.... Initial beqos.... Initial beqosQueue.... zcmdTr181MtParmAttrSet: obj 40428, 1,0,0,0,0,0 MACAddress attr 0x8 zcmdTr181MtParmAttrSet: obj 40428, 6,0,0,0,0,0 MACAddress attr 0x8 zcfgBeQosCtxUpdate: enter !! qosCtx.swQueueEnable=1 qosCtx.lanSwQueueEnable=0 Initial beqosClass.... Initial beqosShaper.... Initial beqosPolicer.... Initial be6rd.... Initial beigmp.... cp: can't stat '/etc/mcpd_igmp.conf': No such file or directory beigmp! /bin/sh: can't create /proc/zy_igmp_noipsrcaddr_enable: Permission denied brctl: invalid argument 'snoop' to 'brctl' /bin/sh: /usr/bin/sys: not found /bin/sh: /usr/bin/sys: not found /bin/sh: /usr/bin/sys: not found /bin/sh: /usr/bin/sys: not found Initial besnmp.... Boot SNMP Initial bemld.... cp: can't stat '/etc/mcpd_mld.conf': No such file or directory zcfgBeLanReRunDhcp4Server() restart DNSMASQ... cat: can't open '/var/run/ecmh.pid': No such file or directory sh: you need to specify whom to kill brctl: invalid argument 'snoop' to 'brctl' Initial bevcAutoHunt.... Initial bevlanAutoHunt.... Initial beupnp.... Initial bemacfilter.... Initial bemacfilter_whitelist.... Initial beuserinterface.... Initial beremoMgmt.... beReloadRemoSrvIptCfg() Jessie Enter call zyUtilInitIptablesConfig() beRemoSrvIptCfg() Jessie Enter beRemoSrvIptCfg() Jessie Enter beRemoSrvIptCfg() Jessie Enter beRemoSrvIptCfg() Jessie Enter 2024-07-11 00:00:16 dnsmasq<1658>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 23 bind server socket 6 on /var/lib/.sock/zcfg_sockaddr23 successfully beRemoSrvIptCfg() Jessie Enter beRemoSrvIptCfg() Jessie Enter beRemoSrvIptCfg() Jessie Enter Set: phy[2].reg[0] = 1940 mount: mounting devpts on /dev/pts failed: Device or resource busy Initial bechangehosticon.... Initial behosts.... Initial behostshost.... Initial becert.... beConfigBootGenCertificate(): Certificate Import: Private Key does not exist. Initial http with port(443), SSL enable. Initial http with port(80), SSL disable. beCertForMqtt() MqttClientObj->X_ZYXEL_Certificate=, MqttClientObj->X_ZYXEL_CA_Certificate=mqtt-and-acs-ca.pem Initial beportmirror.... Initial bedslite.... Initial beSTBVendorID.... Initial berip.... 2024-07-11 00:00:16 zhttpd<1699>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 15 bind server socket 52 on /var/lib/.sock/zcfg_sockaddr15 successfully killall: ripd: no process killed Initial betr64.... Initial bednsentry.... sh: invalid number '1661 1662' Initial bemqttentry.... beConfigBoot() found RDM_OID_MQTT_CLIENT Initial bezx.... Initial bevlangroup.... Initial beTFTPServerName.... Initial bespeedtest.... Initial becellintf.... F:beModuleInit(389) reg beCellIntfZySccConf[ 27.740000] Ralink HW NAT Module Enabled igObjectSetting [ 27.752000] init PpeVirtFoeBase_tmp = bb900000 beginF:beModuleI[ 27.760000] init ppe_foe_base = bb900000 nit(391) reg beC[ 27.772000] ppe_dev_reg_handler : ineterface eth2 register (0) ellIntfZySccConf[ 27.784000] ppe_set_dst_port :dst_port[0] =eth2 igObjectSetting [ 27.796000] ppe_dev_reg_handler : ineterface eth3 register (1) endbeCellIntfCon[ 27.812000] ppe_set_dst_port :dst_port[1] =eth3 figStatsUpdate()[ 27.824000] ppe_dev_reg_handler : ineterface wwan0 register (2) [186] F:beCell[ 27.840000] ppe_set_dst_port :dst_port[2] =wwan0 IntfConfigStatsU[ 27.852000] ppe_dev_reg_handler : ineterface wwan1 register (3) pdate, zcfgCommo[ 27.864000] ppe_set_dst_port :dst_port[3] =wwan1 nSendAndGetRepla[ 27.876000] ppe_dev_reg_handler : ineterface wwan2 register (4) y... 2024-07-11[ 27.892000] ppe_set_dst_port :dst_port[4] =wwan2 00:00:17 zcmd<8[ 27.904000] ppe_dev_reg_handler : ineterface wwan3 register (5) 88>, zcfg_msg.c:[ 27.916000] ppe_set_dst_port :dst_port[5] =wwan3 419, _msg_send(), ERROR: fail to sendto /var/lib/.sock/zcfg_sockaddr39, errno = 2(No such file or directory), srcEid = 1, dstEid = 39, type = 7001 with reply, oid = 0 2024-07-11 00:00:17 zcmd<888>, zcfg_msg.c:822, zcfg_msg_sendAndGetReply(), ERROR: fail to send message. ret = -5 [253] F:beConfigBoot, Insert HWNAT module... [258] F:beConfigBoot, Cellular interface enable... zcfgCommonStartRilcmdDaemon: /sbin/rilcmd.sh & [268] F:beConfigBoot, NetworkRequested: [283] F:beConfigBoot, Boot RDM_OID_CELL after init() Networkmonitor_enable:0 FqCodel_enable:0 ProxyARP_Enabled:0 ARP_Table_Size:1024 RILCMD: Start /dev/ttyUSB2... init_zcfg 2024-07-11 00:00:17 rilcmd<1734>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 39 bind server socket 50 on /var/lib/.sock/zcfg_sockaddr39 successfully RILCMD STATE: RS_ERROR ============> RS_INIT beConfigBoot proxy_arp drop_gratuitous_arp disable Initial beremoMgmtPassthru.... beConfigBoot() Jessie Boot RemoMgmtPassthru ++++++++++++++++++++++++++++++++++++++++ TTY not exist, wait more time for ready. ++++++++++++++++++++++++++++++++++++++++ beConfigBoot() Jessie tmpIpfaceObj->X_ZYXEL_IfName=br0 beConfigBoot() Jessie tmpIpfaceObj->X_ZYXEL_IfName=wwan0 InitPassthruChainMulti() Jessie Enter with wan_idx = 1 InitPassthruChainMulti() Jessie :PR_IPPASS_GENERAL1 - InitPassthruChainMulti() Jessie -I PREROUTING -j PR_IPPASS_GENERAL1 Set: phy[2].reg[0] = 1040 [beIppassIpv4AclChainCreated]set created beDynamicDnsObjSet : Enter [beIppassIpv4AclChainCreated]set created killall: updatedd: no process killed [beIppassIpv6AclChainCreated]set created [beIppassIpv6AclChainCreated]set created initWanNatPostRoute() for router mode :NAT_PO_IPPASS1 - initWanNatPostRoute() for router mode -A POSTROUTING -j NAT_PO_IPPASS1 beConfigBoot() Jessie tmpIpfaceObj->X_ZYXEL_IfName=wwan1 beConfigBoot() Jessie tmpIpfaceObj->X_ZYXEL_IfName=wwan2 beConfigBoot() Jessie tmpIpfaceObj->X_ZYXEL_IfName=wwan3 beConfigBoot() Jessie tmpIpfaceObj->X_ZYXEL_IfName=br1 beConfigBoot() Jessie flag_isIpPassThruEnable=1 warning! crc error in section Factory: expect 0x6e909c7c, got 0xffffffff! Image1 Already Stable === Self-check Start === LAN(br0) : OK Wifi_24G(ra0) : OK LTE(wwan0) : OK LTE_AT(/sys/class/tty/ttyUSB2) : OK <<< ======================= >>> <<< Device is ready for use >>> <<< ======================= >>> InsertWIFIblockrule : to insert rule to block Wifi traffic to wwan interface internet beConfigBoot() Jessie call beReloadRemoSrvPassthruIptCfg() beReloadRemoSrvPassthruIptCfg() Jessie Enter beRemoPassthruTrustDomainChainInit_Generic() Jessie Enter beRemoSrvPassthruIptCfg() Jessie Enter [GetIpPassThruMulti][269] objIid.idx[0](1), ipIfacePath(IP.Interface.2) [GetIpPassThruMulti][304] BrName(br1) [GetIpPassThruMulti][318] LteName(wwan0) [GetIpPassThruMulti][322] Get LTEIPAddress fail: IP.Interface.2 [GetIpPassThruMulti][324] LTEIPAddress(), SubnetMask() beRemoSrvPassthruIptCfg() Jessie Enter [GetIpPassThruMulti][269] objIid.idx[0](1), ipIfacePath(IP.Interface.2) [GetIpPassThruMulti][304] BrName(br1) [GetIpPassThruMulti][318] LteName(wwan0) [GetIpPassThruMulti][322] Get LTEIPAddress fail: IP.Interface.2 [GetIpPassThruMulti][324] LTEIPAddress(), SubnetMask() beRemoSrvPassthruIptCfg() Jessie Enter [GetIpPassThruMulti][269] objIid.idx[0](1), ipIfacePath(IP.Interface.2) [GetIpPassThruMulti][304] BrName(br1) [GetIpPassThruMulti][318] LteName(wwan0) [GetIpPassThruMulti][322] Get LTEIPAddress fail: IP.Interface.2 [GetIpPassThruMulti][324] LTEIPAddress(), SubnetMask() beRemoSrvPassthruIptCfg() Jessie Enter [GetIpPassThruMulti][269] objIid.idx[0](1), ipIfacePath(IP.Interface.2) [GetIpPassThruMulti][304] BrName(br1) [GetIpPassThruMulti][318] LteName(wwan0) [GetIpPassThruMulti][322] Get LTEIPAddress fail: IP.Interface.2 [GetIpPassThruMulti][324] LTEIPAddress(), SubnetMask() beRemoSrvPassthruIptCfg() Jessie Enter [GetIpPassThruMulti][269] objIid.idx[0](1), ipIfacePath(IP.Interface.2) [GetIpPassThruMulti][304] BrName(br1) [GetIpPassThruMulti][318] LteName(wwan0) [GetIpPassThruMulti][322] Get LTEIPAddress fail: IP.Interface.2 [GetIpPassThruMulti][324] LTEIPAddress(), SubnetMask() beRemoSrvPassthruIptCfg() Jessie Enter [GetIpPassThruMulti][269] objIid.idx[0](1), ipIfacePath(IP.Interface.2) [GetIpPassThruMulti][304] BrName(br1) [GetIpPassThruMulti][318] LteName(wwan0) [GetIpPassThruMulti][322] Get LTEIPAddress fail: IP.Interface.2 [GetIpPassThruMulti][324] LTEIPAddress(), SubnetMask() Initial bel2tpv3.... [Marcus debug] Enter beConfigBoot(24). [Marcus debug] Enter bel2tpv3ConfigStatsUpdate(16). Initial belocalAgentCert.... Initial betr369.... beConfigBoot() found RDM_OID_DEV_LOCAL_AGENT_M_T_P_M_Q_T_T beConfigBoot() found RDM_OID_DEV_LOCAL_AGENT_CONTROLLER beConfigBoot() found RDM_OID_LOCAL_AGENT_CONTROLLER_M_T_P_M_Q_T_T Initial beipconntrack.... Initial beswmodules.... beSWModulesEUConfigStatsUpdate() cmd /data/du1 beSWModulesEUConfigStatsUpdate() exeUnitObj->Status Idle beConfigBoot() found RDM_OID_SW_MODULE_EXEC_UNIT 1 beSWModulesEUConfigStatsUpdate() cmd /data/du2 beSWModulesEUConfigStatsUpdate() exeUnitObj->Status Idle beConfigBoot() found RDM_OID_SW_MODULE_EXEC_UNIT 2 beSWModulesEUConfigStatsUpdate() cmd /data/du3 beSWModulesEUConfigStatsUpdate() exeUnitObj->Status Idle beConfigBoot() found RDM_OID_SW_MODULE_EXEC_UNIT 3 beSWModulesEUConfigStatsUpdate() cmd /data/du4 beSWModulesEUConfigStatsUpdate() exeUnitObj->Status Idle beConfigBoot() found RDM_OID_SW_MODULE_EXEC_UNIT 4 beSWModulesEUConfigStatsUpdate() cmd /data/du5 beSWModulesEUConfigStatsUpdate() exeUnitObj->Status Idle beConfigBoot() found RDM_OID_SW_MODULE_EXEC_UNIT 5 beSWModulesEUConfigStatsUpdate() cmd /data/du6 beSWModulesEUConfigStatsUpdate() exeUnitObj->Status Idle beConfigBoot() found RDM_OID_SW_MODULE_EXEC_UNIT 6 beSWModulesEUConfigStatsUpdate() cmd /data/du7 beSWModulesEUConfigStatsUpdate() exeUnitObj->Status Idle beConfigBoot() found RDM_OID_SW_MODULE_EXEC_UNIT 7 beSWModulesEUConfigStatsUpdate() cmd /data/du8 beSWModulesEUConfigStatsUpdate() exeUnitObj->Status Idle beConfigBoot() found RDM_OID_SW_MODULE_EXEC_UNIT 8 Initial beobudpst.... Back-end module init finished zyUtilIGetModelID: Function executed 2024-07-11 00:00:19 udpst<1848>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 88 bind server socket 50 on /var/lib/.sock/zcfg_sockaddr88 successfully [Info] UDP Speed Test [Info] Software Ver: 7.5.0, Protocol Ver: 8-9, Built: Jul 11 2024 14:42:20 [Info] Mode: Server, Payload Default[Max]: 1222[8972], Authentication: Available, SendMMsg(): Unavailable /bin/sh: /sbin/zhotplugd: not found Initial USB driver... mount usbfs... mount: mounting usbfs on /proc/bus/usb/ failed: No such file or directory /bin/sh: /etc/init.d/mcpd.sh: not found turn on ztr69 START enable Lan and Wan... Set: phy[0].reg[0] = 1040 Set: phy[1].reg[0] = 1040 Set: phy[2].reg[0] = 1040 zcfgFeTr181SpvHandleRoutInit zcfgFeTr181QueryHandleRoutInit 2024-07-11 00:00:19 ztr69<1868>, zcfg_msg.c:598, zcfg_msg_serverInit(), INFO: EID 9 bind server socket 56 on /var/lib/.sock/zcfg_sockaddr9 successfully Set: phy[3].reg[0] = 1040 beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1356 beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1356 beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1356 beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1356 beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1356 beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1356 beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1356 beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1356 /bin/sh: zyims.sh: not found zcmd.c line 6070, zcmdReqProcess() : get ZCFG_MSG_INIT_DATAMODEL_FIN MTKSOC/zcmd_wrapper.c line 2992, zcmdEnableConfigSave() : enable tr98mapTableSaveFlag and configSaveFlag set_LTE_connection_status: Down beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1365 beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1365 beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1365 beCellIntfConfigStatsUpdate() [186] F:beCellIntfConfigStatsUpdate, zcfgCommonSendAndGetReplay... [194] F:beCellIntfConfigStatsUpdate,length = 1365 item_ptr->GnssLoc.Enable NOT equal to gnss_state quectel_eg18_init() cell_lock_enable = 0 quectel_eg18_init() cell_lock_numbers = 0 quectel_eg18_init() Set cell lock info to module AT+QNWLOCK="common/4g",0 [118] DeviceManufacturer: Quectel [139] DeviceModelName: EG18 [160] DeviceFirmwareVersion: EG18EAPAR01A08M4G [209] DeviceIMEI: 357047100109487 [230] SIMCardIMSI: Unknown [259] SIMCardICCID: Unknown [297] SIMCardMSISDN: Unknown [313] Device_Support_Acts: LTE,UMTS [314] Device_Support_Serivce: PS only,Combine [315] Device_Support_Bands: LTE_BC1,LTE_BC3,LTE_BC5,LTE_BC7,LTE_BC8,LTE_BC20,LTE_BC28,LTE_BC38,LTE_BC40,LTE_BC41 zcfg_set_pin_protect_flag: Set CELL_INTF_USIM OK, ret = 0 zcfg_set_pin_protect_flag: Set CELL_INTF_USIM OK, ret = 0 RILCMD STATE: RS_INIT ============> RS_IDLE

=================================================================== MT7621 stage1 code 10:33:11 (ASIC) CPU=50000000 HZ BUS=16666666 HZ ================================================================== Change MPLL source from XTAL to CR... do MEMPLL setting.. MEMPLL Config : 0x31100000 3PLL mode + External loopback === XTAL-40Mhz === DDR-800Mhz === PLL4 FB_DL: 0x9, 1/0 = 558/466 25000000 PLL2 FB_DL: 0x12, 1/0 = 564/460 49000000 PLL3 FB_DL: 0x12, 1/0 = 573/451 49000000 do DDR setting..[00320381] Apply DDR3 Setting...(use customer AC) 0 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 -------------------------------------------------------------------------------- 0000:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0001:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0002:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0003:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0004:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0005:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0006:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0007:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0008:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0009:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000E:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 000F:| 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0010:| 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0011:| 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0012:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0013:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0014:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0015:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0016:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0017:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0018:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0019:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001E:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001F:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 rank 0 coarse = 16 rank 0 fine = 56 B:| 0 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 opt_dle value:10 DRAMC_R0DELDLY[018]=00003030 ================================================================== RX DQS perbit delay software calibration ================================================================== 1.0-15 bit dq delay value ================================================================== bit| 0 1 2 3 4 5 6 7 8 9 -------------------------------------- 0 | 10 9 11 13 10 11 11 9 8 11 10 | 10 11 10 11 11 11 -------------------------------------- ================================================================== 2.dqs window x=pass dqs delay value (min~max)center y=0-7bit DQ of every group input delay:DQS0 =48 DQS1 = 48 ================================================================== bit DQS0 bit DQS1 0 (1~91)46 8 (1~91)46 1 (1~92)46 9 (2~92)47 2 (2~92)47 10 (1~94)47 3 (1~92)46 11 (1~90)45 4 (1~92)46 12 (1~91)46 5 (1~93)47 13 (1~90)45 6 (2~94)48 14 (2~95)48 7 (1~94)47 15 (1~92)46 ================================================================== 3.dq delay value last ================================================================== bit| 0 1 2 3 4 5 6 7 8 9 -------------------------------------- 0 | 12 11 12 15 12 12 11 10 10 12 10 | 11 14 12 14 11 13 ================================================================== ================================================================== TX perbyte calibration ================================================================== DQS loop = 15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqsdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqsdly_pass[1]=15, finish count=2 DQ loop=15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqdly_pass[1]=15, finish count=2 byte:0, (DQS,DQ)=(8,8) byte:1, (DQS,DQ)=(8,8) 20,data:88 [EMI] DRAMC calibration passed =================================================================== MT7621 stage1 code done CPU=50000000 HZ BUS=16666666 HZ =================================================================== U-Boot 1.1.3 (Dec 6 2019 - 18:37:12) Board: Ralink APSoC DRAM: 256 MB relocate_code Pointer at: 8ff94000 Config XHCI 40M PLL ****************************** Software System Reset Occurred ****************************** Allocate 16 byte aligned buffer: 8ffcb1f0 Enable NFI Clock # MTK NAND # : Use HW ECC NAND ID [C2 F1 80 95 02] Device found in MTK table, ID: c2f1, EXT_ID: 809502 Support this Device in MTK table! c2f1 select_chip [NAND]select ecc bit:4, sparesize :64 spare_per_sector=16 Signature matched and data read! load_fact_bbt success 1023 load fact bbt success [mtk_nand] probe successfully! mtd->writesize=2048 mtd->oobsize=64, mtd->erasesize=131072 devinfo.iowidth=8 ..============================================ Ralink UBoot Version: 5.0.0.0 -------------------------------------------- ASIC MT7621A DualCore (MAC to MT7530 Mode) DRAM_CONF_FROM: Auto-Detection DRAM_TYPE: DDR3 DRAM bus: 16 bit Xtal Mode=5 OCP Ratio=1/3 Flash component: 128 MBytes NOR Flash with NAND boot partition size Date:Dec 6 2019 Time:18:37:12 ============================================ icache: sets:256, ways:4, linesz:32 ,total:32768 dcache: sets:256, ways:4, linesz:32 ,total:32768 ##### The CPU freq = 880 MHZ #### estimate memory size =256 Mbytes #Reset_MT7530 .## Starting application at 0x8402A800 ... Z-LOADER V1.30 | 12/06/2019 18:37:15 Zyxel TRX Image 1 --> Found! Header Checksum OK ============ZyXEL header information================== chipId : MT7621A boardId : LTE7490-M904 modelId : 07 04 09 00 kernel_len : (9019167) kernelChksum : (0x12345678) swVersionInt : 9.99(ABQY.9)OpenWrt-recovery swVersionExt : 9.99(ABQY.9)OpenWrt-recovery Zyxel TRX Image 2 --> Found! Header Checksum OK ============ZyXEL header information================== chipId : MT7621A boardId : LTE7490-M904 modelId : 07 04 09 00 kernel_len : (15093660) kernelChksum : (0x76B8D47C) swVersionInt : 1.00(ABQY.3)C0 swVersionExt : 1.00(ABQY.3)C0 ================================================= Check image validation: Image1 Header Magic Number --> OK Image2 Header Magic Number --> OK Image1 Header Checksum --> OK Image2 Header Checksum --> OK Image1 Data Checksum --> ..........................................................................................................................................OK Image2 Data Checksum --> .......................................................................................................................................................................................................................................OK Image1 Stable Flag --> Not stable Image1 Try Counter --> 0 Image1: OK Image2: OK ..Erasing NAND Flash... ranand_erase: start:80000, len:20000 .Writing to NAND Flash... done ================================================= NetLoop,call eth_halt ! NetLoop,call eth_init ! Trying Eth0 (10/100-M) Waitting for RX_DMA_BUSY status Start... done ETH_STATE_ACTIVE!! Multiboot Listening... 0 ## Booting image at bc14017c ... ..Erasing NAND Flash... ranand_erase: start:80000, len:20000 .Writing to NAND Flash... done Image Name: MIPS OpenWrt Linux-5.15.143 Image Type: MIPS Linux Kernel Image (lzma compressed) Data Size: 9019103 Bytes = 8.6 MB Load Address: 80001000 Entry Point: 80001000 .......................................................................................................................................... Verifying RAS Image Checksum ... ..Erasing NAND Flash... ranand_erase: start:80000, len:20000 .Writing to NAND Flash... done OK Uncompressing Kernel Image ... OK No initrd ## Transferring control to Linux (at address 80001000) ... ## Giving linux memsize in MB, 256 Starting kernel ... [ 0.000000] Linux version 5.15.143 (erny@MSI-Laptop) (mipsel-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r24684-bf1c12f68b) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 SMP Wed Dec 20 22:11:23 2023 [ 0.000000] SoC Type: MediaTek MT7621 ver:1 eco:3 [ 0.000000] printk: bootconsole [early0] enabled [ 0.000000] CPU0 revision is: 0001992f (MIPS 1004Kc) [ 0.000000] MIPS: machine is ZyXEL LTE7490-M904 [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] VPE topology {2,2} total 4 [ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.000000] Zone ranges: [ 0.000000] Normal [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] percpu: Embedded 11 pages/cpu s14512 r8192 d22352 u45056 [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 64960 [ 0.000000] Kernel command line: console=ttyS0,57600 rootfstype=squashfs,jffs2 [ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear) [ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear) [ 0.000000] Writing ErrCtl register=00020920 [ 0.000000] Readback ErrCtl register=00020920 [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] Memory: 242924K/262144K available (6986K kernel code, 626K rwdata, 1436K rodata, 7196K init, 216K bss, 19220K reserved, 0K cma-reserved) [ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] Tracing variant of Tasks RCU enabled. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies. [ 0.000000] NR_IRQS: 256 [ 0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0xcaf478abb4, max_idle_ns: 440795247997 ns [ 0.000006] sched_clock: 64 bits at 880MHz, resolution 1ns, wraps every 4398046511103ns [ 0.016021] Calibrating delay loop... 586.13 BogoMIPS (lpj=2930688) [ 0.088325] pid_max: default: 32768 minimum: 301 [ 0.098285] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.112703] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.132407] rcu: Hierarchical SRCU implementation. [ 0.142768] smp: Bringing up secondary CPUs ... [ 0.152642] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.152673] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.152690] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.152742] CPU1 revision is: 0001992f (MIPS 1004Kc) [ 0.212260] Synchronize counters for CPU 1: done. [ 0.274870] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.274895] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.274906] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.274937] CPU2 revision is: 0001992f (MIPS 1004Kc) [ 0.333715] Synchronize counters for CPU 2: done. [ 0.394216] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.394242] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.394253] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.394286] CPU3 revision is: 0001992f (MIPS 1004Kc) [ 0.453309] Synchronize counters for CPU 3: done. [ 0.512923] smp: Brought up 1 node, 4 CPUs [ 0.526849] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.546376] futex hash table entries: 1024 (order: 3, 32768 bytes, linear) [ 0.560357] pinctrl core: initialized pinctrl subsystem [ 0.572260] NET: Registered PF_NETLINK/PF_ROUTE protocol family [ 0.610608] clocksource: Switched to clocksource GIC [ 0.621840] NET: Registered PF_INET protocol family [ 0.631716] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear) [ 0.646810] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear) [ 0.663376] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) [ 0.678725] TCP established hash table entries: 2048 (order: 1, 8192 bytes, linear) [ 0.693959] TCP bind hash table entries: 2048 (order: 2, 16384 bytes, linear) [ 0.708126] TCP: Hash tables configured (established 2048 bind 2048) [ 0.720938] UDP hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.733935] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.748126] NET: Registered PF_UNIX/PF_LOCAL protocol family [ 0.759400] PCI: CLS 0 bytes, default 32 [ 0.771452] workingset: timestamp_bits=14 max_order=16 bucket_order=2 [ 0.792853] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.804433] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 1.295447] gpio-484 (lte-pwrkey): hogged as output/high [ 1.306151] gpio-498 (lte-power): hogged as output/high [ 1.317172] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 1.328998] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 1.340863] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 1.352854] mt7621-pci 1e140000.pcie: host bridge /pcie@1e140000 ranges: [ 1.366245] mt7621-pci 1e140000.pcie: No bus range found for /pcie@1e140000, using [bus 00-ff] [ 1.383698] mt7621-pci 1e140000.pcie: MEM 0x0060000000..0x006fffffff -> 0x0060000000 [ 1.399916] mt7621-pci 1e140000.pcie: IO 0x001e160000..0x001e16ffff -> 0x0000000000 [ 1.770803] mt7621-pci 1e140000.pcie: pcie1 no card, disable it (RST & CLK) [ 1.784650] mt7621-pci 1e140000.pcie: pcie2 no card, disable it (RST & CLK) [ 1.798450] mt7621-pci 1e140000.pcie: PCIE0 enabled [ 1.808139] PCI coherence region base: 0x60000000, mask/settings: 0xf0000002 [ 1.822393] mt7621-pci 1e140000.pcie: PCI host bridge to bus 0000:00 [ 1.835006] pci_bus 0000:00: root bus resource [bus 00-ff] [ 1.845855] pci_bus 0000:00: root bus resource [mem 0x60000000-0x6fffffff] [ 1.859484] pci_bus 0000:00: root bus resource [io 0x0000-0xffff] [ 1.871846] pci 0000:00:00.0: [0e8d:0801] type 01 class 0x060400 [ 1.883729] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x7fffffff] [ 1.896147] pci 0000:00:00.0: reg 0x14: [mem 0x60100000-0x6010ffff] [ 1.908676] pci 0000:00:00.0: supports D1 [ 1.916539] pci 0000:00:00.0: PME# supported from D0 D1 D3hot [ 1.930384] pci 0000:01:00.0: [14c3:7603] type 00 class 0x028000 [ 1.942340] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff] [ 1.954862] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold [ 1.968481] pci 0000:00:00.0: PCI bridge to [bus 01-ff] [ 1.978817] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff] [ 1.990876] pci 0000:00:00.0: bridge window [mem 0x60000000-0x600fffff] [ 2.004389] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01 [ 2.017544] pci 0000:00:00.0: BAR 0: no space for [mem size 0x80000000] [ 2.030633] pci 0000:00:00.0: BAR 0: failed to assign [mem size 0x80000000] [ 2.044588] pci 0000:00:00.0: BAR 8: assigned [mem 0x60000000-0x600fffff] [ 2.058067] pci 0000:00:00.0: BAR 1: assigned [mem 0x60100000-0x6010ffff] [ 2.071529] pci 0000:00:00.0: BAR 7: assigned [io 0x0000-0x0fff] [ 2.083609] pci 0000:01:00.0: BAR 0: assigned [mem 0x60000000-0x600fffff] [ 2.097072] pci 0000:00:00.0: PCI bridge to [bus 01] [ 2.106929] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff] [ 2.119017] pci 0000:00:00.0: bridge window [mem 0x60000000-0x600fffff] [ 2.134368] Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled [ 2.148862] printk: console [ttyS0] disabled [ 2.157415] 1e000c00.uartlite: ttyS0 at MMIO 0x1e000c00 (irq = 19, base_baud = 3125000) is a 16550A [ 2.175372] printk: console [ttyS0] enabled [ 2.175372] printk: console [ttyS0] enabled [ 2.191912] printk: bootconsole [early0] disabled [ 2.191912] printk: bootconsole [early0] disabled [ 2.470314] nand: device found, Manufacturer ID: 0xc2, Chip ID: 0xf1 [ 2.483209] nand: Macronix MX30LF1G18AC [ 2.490916] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64 [ 2.506031] mt7621-nand 1e003000.nand: ECC strength adjusted to 4 bits [ 2.519263] 10 fixed-partitions partitions found on MTD device mt7621-nand [ 2.533043] Creating 10 MTD partitions on "mt7621-nand": [ 2.543669] 0x000000000000-0x000000080000 : "Bootloader" [ 2.560993] 0x000000080000-0x000000100000 : "Config" [ 2.577285] 0x000000100000-0x000000140000 : "Factory" [ 2.592324] 0x000000140000-0x000002000000 : "Kernel" [ 2.928057] 0x000000540000-0x000002000000 : "ubi" [ 3.232850] 0x000002140000-0x000004000000 : "Kernel2" [ 3.569894] 0x000004000000-0x000004100000 : "wwan" [ 3.591747] 0x000004100000-0x000005100000 : "data" [ 3.776468] 0x000005100000-0x000005200000 : "rom-d" [ 3.798330] 0x000005200000-0x000005280000 : "reserve" [ 3.955361] mt7530-mdio mdio-bus:1f: MT7530 adapts as multi-chip module [ 3.975013] mtk_soc_eth 1e100000.ethernet eth0: mediatek frame engine at 0xbe100000, irq 22 [ 3.993459] i2c_dev: i2c /dev entries driver [ 4.004705] NET: Registered PF_INET6 protocol family [ 4.017840] Segment Routing with IPv6 [ 4.025274] In-situ OAM (IOAM) with IPv6 [ 4.033223] NET: Registered PF_PACKET protocol family [ 4.043876] 8021q: 802.1Q VLAN Support v1.8 [ 4.058691] mt7530-mdio mdio-bus:1f: MT7530 adapts as multi-chip module [ 9.296651] mt7530-mdio mdio-bus:1f: configuring for fixed/rgmii link mode [ 9.311533] mt7530-mdio mdio-bus:1f: Link is Up - 1Gbps/Full - flow control rx/tx [ 9.313263] mt7530-mdio mdio-bus:1f lan (uninitialized): PHY [mt7530-0:02] driver [MediaTek MT7530 PHY] (irq=24) [ 9.350260] DSA: tree 0 setup [ 9.359804] UBI error: no valid UBI magic found inside mtd4 [ 9.411473] Freeing unused kernel image (initmem) memory: 7196K [ 9.423361] This architecture does not have kernel memory protection. [ 9.436216] Run /init as init process [ 10.434472] init: Console is alive [ 10.441928] init: - watchdog - [ 10.465842] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 10.496371] usbcore: registered new interface driver usbfs [ 10.507600] usbcore: registered new interface driver hub [ 10.518459] usbcore: registered new device driver usb [ 10.542699] xhci-mtk 1e1c0000.xhci: supply vbus not found, using dummy regulator [ 10.557896] xhci-mtk 1e1c0000.xhci: supply vusb33 not found, using dummy regulator [ 10.573320] xhci-mtk 1e1c0000.xhci: xHCI Host Controller [ 10.583978] xhci-mtk 1e1c0000.xhci: new USB bus registered, assigned bus number 1 [ 10.604090] xhci-mtk 1e1c0000.xhci: hcc params 0x01401198 hci version 0x96 quirks 0x0000000000290010 [ 10.622394] xhci-mtk 1e1c0000.xhci: irq 20, io mem 0x1e1c0000 [ 10.634057] xhci-mtk 1e1c0000.xhci: xHCI Host Controller [ 10.644664] xhci-mtk 1e1c0000.xhci: new USB bus registered, assigned bus number 2 [ 10.659598] xhci-mtk 1e1c0000.xhci: Host supports USB 3.0 SuperSpeed [ 10.673573] hub 1-0:1.0: USB hub found [ 10.681349] hub 1-0:1.0: 2 ports detected [ 10.690652] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM. [ 10.708135] hub 2-0:1.0: USB hub found [ 10.715936] hub 2-0:1.0: 1 port detected [ 10.733730] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 10.758895] init: - preinit - [ 10.983532] random: jshn: uninitialized urandom read (4 bytes read) [ 11.074017] random: jshn: uninitialized urandom read (4 bytes read) [ 11.117946] random: jshn: uninitialized urandom read (4 bytes read) [ 11.416408] mtk_soc_eth 1e100000.ethernet eth0: configuring for fixed/rgmii link mode [ 11.438457] mtk_soc_eth 1e100000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx [ 11.441161] mt7530-mdio mdio-bus:1f lan: configuring for phy/gmii link mode [ 11.469727] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready Press the [f] key and hit [enter] to enter failsafe mode Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level [ 12.031366] usb 2-1: new SuperSpeed USB device number 2 using xhci-mtk [ 13.638474] procd: - early - [ 13.644669] procd: - watchdog - [ 14.222432] procd: - watchdog - [ 14.229462] procd: - ubus - [ 14.246688] random: ubusd: uninitialized urandom read (4 bytes read) [ 14.286480] random: ubusd: uninitialized urandom read (4 bytes read) [ 14.300053] random: ubusd: uninitialized urandom read (4 bytes read) [ 14.322981] procd: - init - Please press Enter to activate this console. [ 14.769108] kmodloader: loading kernel modules from /etc/modules.d/* [ 14.802133] mtk-eip93 1e004000.crypto: EIP93 Crypto Engine Initialized. [ 15.012160] usbcore: registered new interface driver cdc_wdm [ 15.024794] Loading modules backported from Linux version v6.5-0-g2dde18cd1d8f [ 15.039320] Backport generated by backports.git v5.15.92-1-56-g5fb2ccb6b9e8 [ 15.073246] usbcore: registered new interface driver usbserial_generic [ 15.086612] usbserial: USB Serial support registered for generic [ 15.100849] usbcore: registered new interface driver cdc_ether [ 15.115132] usbcore: registered new interface driver cdc_ncm [ 15.188514] pci 0000:00:00.0: enabling device (0002 -> 0003) [ 15.199900] mt7603e 0000:01:00.0: enabling device (0000 -> 0002) [ 15.212205] mt7603e 0000:01:00.0: ASIC revision: 76030010 [ 15.863146] urngd: v1.0.2 started. [ 16.244184] mt7603e 0000:01:00.0: Firmware Version: ap_pcie [ 16.255454] mt7603e 0000:01:00.0: Build Time: 20160107100755 [ 16.300610] mt7603e 0000:01:00.0: firmware init done [ 16.476940] mt7603e 0000:01:00.0: registering led 'mt76-phy0' [ 16.573526] PPP generic driver version 2.4.2 [ 16.585665] NET: Registered PF_PPPOX protocol family [ 16.599632] xhci-mtk 1e1c0000.xhci: drop_ep_quirk super-speed ep8in intr, mpkt:8, interval:9/32ms [ 16.606646] random: crng init done [ 16.624370] random: 36 urandom warning(s) missed due to ratelimiting [ 16.637590] qmi_wwan 2-1:1.4: cdc-wdm0: USB WDM device [ 16.649971] qmi_wwan 2-1:1.4 wwan0: register 'qmi_wwan' at usb-1e1c0000.xhci-1, WWAN/QMI device, 1e:9e:c4:e4:a0:98 [ 16.671269] usbcore: registered new interface driver qmi_wwan [ 16.688019] usbcore: registered new interface driver cdc_mbim [ 16.707854] usbcore: registered new interface driver option [ 16.719383] usbserial: USB Serial support registered for GSM modem (1-port) [ 16.733930] option 2-1:1.0: GSM modem (1-port) converter detected [ 16.746718] usb 2-1: GSM modem (1-port) converter now attached to ttyUSB0 [ 16.761139] option 2-1:1.1: GSM modem (1-port) converter detected [ 16.774118] usb 2-1: GSM modem (1-port) converter now attached to ttyUSB1 [ 16.788483] option 2-1:1.2: GSM modem (1-port) converter detected [ 16.801428] usb 2-1: GSM modem (1-port) converter now attached to ttyUSB2 [ 16.815764] option 2-1:1.3: GSM modem (1-port) converter detected [ 16.828868] usb 2-1: GSM modem (1-port) converter now attached to ttyUSB3 [ 16.848200] kmodloader: done loading kernel modules from /etc/modules.d/* [ 35.155290] mtk_soc_eth 1e100000.ethernet eth0: Link is Down [ 35.190199] mtk_soc_eth 1e100000.ethernet eth0: configuring for fixed/rgmii link mode [ 35.206968] mtk_soc_eth 1e100000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx [ 35.225289] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready [ 35.241564] mt7530-mdio mdio-bus:1f lan: configuring for phy/gmii link mode [ 35.263464] br-lan: port 1(lan) entered blocking state [ 35.273827] br-lan: port 1(lan) entered disabled state [ 35.286272] device lan entered promiscuous mode [ 35.295620] device eth0 entered promiscuous mode [ 37.956325] mt7530-mdio mdio-bus:1f lan: Link is Up - 1Gbps/Full - flow control rx/tx [ 37.990805] br-lan: port 1(lan) entered blocking state [ 38.001283] br-lan: port 1(lan) entered forwarding state [ 38.018333] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready

This device is very similar to the following devices, so it could be useful to review the information on their device pages:

MT7621AT, 128NAND, 256RAM, 1port, GigabitEthernet, 802.11bgn, 0USB, LTE

mt7621at 128nand 256ram 1port gigabitethernet 802.11bgn 0usb lte
