Dataentry
- Device Type:
- WiFi Router
- Brand:
- ZyXEL
- Model:
- EX5601
- Version:
- T1
- Availability:
- unknown 2024
- Supported Since Commit:
- https://git.openwrt.org/?p=openwrt/openwrt.git;a=commit;h=1c05388ab04c934ec240e8362321908f91381a90
- Supported Since Rel:
- 23.05.0
- Supported Current Rel:
- 24.10.2
- Unsupported Functions:
- Voip (missing drivers or proper Zyxel platform software)
- Gluon support:
- unknown
- Target:
- mediatek
- Subtarget:
- filogic
- Package architecture:
- aarch64_cortex-a53
- Bootloader:
- U-Boot
- CPU:
- MediaTek MT7986A
- CPU Cores:
- 4
- CPU MHz:
- 2000
- Flash MB:
- 512NAND
- RAM MB:
- 1024
- Ethernet 100M ports:
- -
- Ethernet 1Gbit ports:
- 3
- Ethernet 2.5Gbit ports:
- 2
- Ethernet 5Gbit ports:
- -
- Ethernet 10Gbit ports:
- -
- SFP ports:
- -
- SFP+ ports:
- -
- Switch:
- MediaTek MT7531A
- VLAN:
- Yes
- Modem:
- VDSL2
- Comments network ports:
- 2x MaxLinear GPY211B 2.5Gbe Phy
- WLAN Hardware:
- MediaTek MT7986A, MediaTek MT7976AN, MediaTek MT7976GN
- WLAN 2.4GHz:
- b/g/n/ax
- WLAN 5.0GHz:
- a/n/ac/ax
- WLAN 6.0GHz:
- -
- WLAN 60.0GHz:
- -
- WLAN Comments:
- MIMO 4x4:4 on both bands
- WLAN driver:
- mt76
- Detachable Antennas:
- -
- Bluetooth:
- -
- miniPCI ports:
- -
- USB ports:
- 1x 3.0
- SATA ports:
- -
- Video ports:
- -
- Audio ports:
- -
- Phone ports:
- 2
- Serial:
- Yes
- Serial connection parameters:
- 115200 / 8N1
- Serial connection voltage:
- 3.3
- JTAG:
- No
- LED count:
- 12
- Button count:
- 2
- GPIOs:
- ¿
- Power Supply:
- 12 VDC, 3.0A via barrel
- Outdoor:
- No
- OpenVPN performance:
- ¿
- Wireguard performance:
- ¿
- Forum search:
- EX5601
- Git search:
- EX5601
- OEM Device Homepage URL:
- https://www.zyxel.com/service-provider/global/en/products/ethernet-cpe/ethernet-iads/ex5601ex5600-t-series
- Firmware OpenWrt Install URL:
- https://downloads.openwrt.org/releases/24.10.2/targets/mediatek/filogic/openwrt-24.10.2-mediatek-filogic-zyxel_ex5601-t0-ubootmod-initramfs-factory.ubi
- Firmware OpenWrt Upgrade URL:
- https://downloads.openwrt.org/releases/24.10.2/targets/mediatek/filogic/openwrt-24.10.2-mediatek-filogic-zyxel_ex5601-t0-ubootmod-squashfs-sysupgrade.itb
- Firmware OpenWrt snapshot Install URL:
- https://downloads.openwrt.org/snapshots//targets/mediatek/filogic/openwrt-mediatek-filogic-zyxel_ex5601-t0-ubootmod-initramfs-factory.ubi
- Firmware OpenWrt snapshot Upgrade URL:
- https://downloads.openwrt.org/snapshots//targets/mediatek/filogic/openwrt-mediatek-filogic-zyxel_ex5601-t0-ubootmod-squashfs-sysupgrade.itb
- Installation method(s):
- see git-commit
- Comment installation:
- Multiple install images, follow directions, do not use the 2.5Gbit ports for the flashing procedure.
- Recovery method(s):
- see git-commit

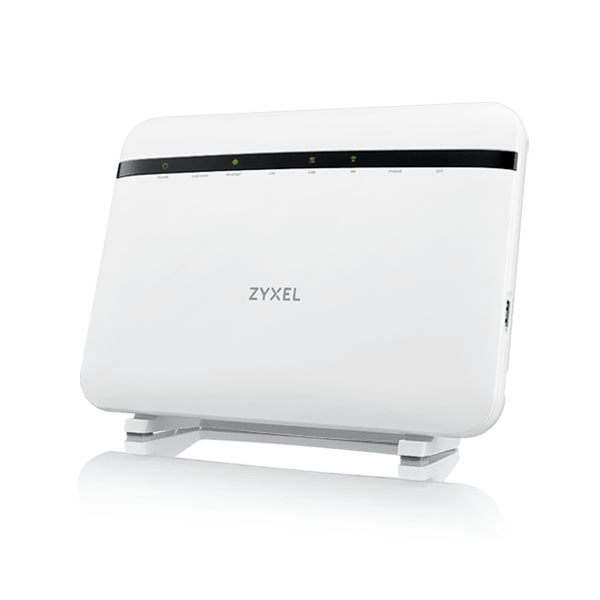

- Picture:
- Comments:
- Closely related device EX5601-T0 (https://openwrt.org/toh/hwdata/zyxel/zyxel_ex5601-t0)
